Outdoor Rental P2.6 LED Screen for Concert and Event

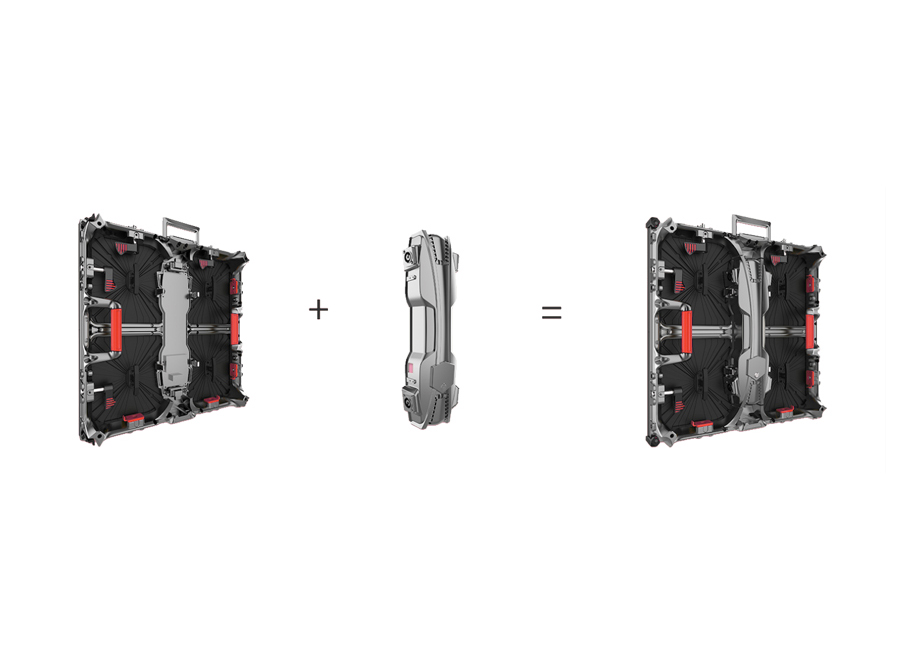

Description: RE series LED panel is modular HUB design, its LED modules is wireless connected to HUB card, and power box is independent, more convenient to assemble and maintenance. With corner protection equipment, RE LED video panel will not easily be damaged from outdoor event and concert assemble and disassemble.
|
Item |
P2.6 |
|
Pixel Pitch |
2.604mm |
|
Led Type |
SMD1921 |
|
Panel Size |
500 x 500mm |
|
Panel Resolution |
192 x 192dots |
|
Panel Material |
Die Casting Aluminum |
|
Screen Weight |
7.5 KG |
|
Drive Method |
1/32 Scan |
|
Best Viewing Distance |
4-40m |
|
Refresh Rate |
3840 Hz |
|
Frame Rate |
60 Hz |
|
Brightness |
5000 nits |
|
Gray Scale |
16 bits |
|
Input Voltage |
AC110V/220V ±10％ |
|
Max Power Consumption |
200W / Panel |
|
Average Power Consumption |
100W / Panel |
|
Application |
Outdoor |
|
Support Input |
HDMI, SDI, VGA, DVI |
|
Power Distribution Box Required |
1.2KW |
|
Total Weight (all included) |
118KG |
A1, We will offer instructions and video to guide you for installation, software setting up, and we also can provide steel structure drawings.
A2, Yes, we can custom LED display size according to your actual installation area.
A4, RTLED accepts EXW, FOB, CFR, CIF, DDP, DDU etc trade terms. If you have your own shipping agent, then can deal with EXW or FOB. If you don’t have shipping agent, then CFR, CIF are good choice. If you don’t want to clearance custom, then DDU and DDP are suitable for you.
A4, Firstly, we check all materials by experienced worker.
Secondly, all LED modules should be aged at least 48 hours.
Thirdly, after assemble LED display, it will aging 72 hours before shipping. And we have waterproof test for outdoor LED display.
