1. What is an LED Display Screen?
An LED display screen is a flat panel display composed of a certain spacing and specification of light points. Each light point consists of a single LED lamp. By utilizing light-emitting diodes as display elements, it can showcase text, graphics, images, animations, market trends, video, and various other types of information. LED display is typically categorized into stroke displays and character displays, such as digital tubes, symbol tubes, dot matrix tubes, level display tubes, etc.
2. How Does an LED Display Screen Work?
The working principle of an LED display screen involves using the characteristics of light-emitting diodes. By controlling the LED devices to form an array, a display screen is created. Each LED represents a pixel, and LEDs are organized into different columns and rows, forming a grid-like structure. When specific content needs to be displayed, controlling the brightness and color of each LED can create the desired image or text. Brightness and color control can be managed through digital signals. The display system processes these signals and sends them to the respective LEDs to control their brightness and color. Pulse Width Modulation (PWM) technology is often employed to achieve high brightness and clarity, by switching the LEDs on and off rapidly to control brightness variations. Full-color LED technology combines red, green, and blue LEDs to display vibrant images through different brightness and color combinations.
3. Components of LED Display Board
LED display board mainly comprises the following parts:
LED Unit Board: The core display component, consisting of LED modules, driver chips, and a PCB board.
Control Card: Controls the LED unit board, capable of managing 1/16 scan of 256×16 dual-color screen, enabling cost-effective screen assembly.
Connections: Includes data lines, transmission lines, and power lines. Data lines connect the control card and LED unit board, transmission lines link the control card and computer, and power lines connect the power supply to the control card and LED unit board.
Power Supply: Typically a switching power supply with a 220V input and 5V DC output. Depending on the environment, additional accessories like front panels, enclosures, and protective covers might be included.
4. Features of LED Wall
RTLED‘s LED display wall boast several notable features:
High Brightness: Suitable for both outdoor and indoor use.
Long Lifespan: Typically lasting over 100,000 hours.
Wide Viewing Angle: Ensuring visibility from various angles.
Flexible Sizes: Customizable to any size, from under one square meter to hundreds or thousands of square meters.
Easy Computer Interface: Supports various software for displaying text, images, videos, etc.
Energy Efficiency: Low power consumption and environmentally friendly.
High Reliability: Operable in harsh environments like extreme temperatures and humidity.
Real-Time Display: Capable of showing real-time information like news, advertisements, and notifications.
Efficiency: Fast information updates and display.
Multifunctionality: Supports video playback, interactive communication, remote monitoring, and more.
5. Components of LED Electronic Display Systems
LED electronic display systems primarily consist of:
LED Display Screen: The core part, comprising LED lights, circuit boards, power supplies, and control chips.
Control System: Receives, stores, processes, and distributes display data to the LED screen.
Information Processing System: Handles data decoding, format conversion, image processing, etc., ensuring accurate data display.
Power Distribution System: Provides power to the LED screen, including power sockets, lines, and adapters.
Safety Protection System: Protects the screen from water, dust, lightning, etc.
Structural Frame Engineering: Includes steel structures, aluminum profiles, truss structures for supporting and fixing screen components. Additional accessories like front panels, enclosures, and protective covers can enhance functionality and safety.
6. Classification of LED Video Walls
LED video wall can be classified by various criteria:
6.1 By Color
• Single Color: Displays one color, such as red, white, or green.
• Dual Color: Displays red and green, or mixed yellow.
• Full Color: Displays red, green, and blue, with 256 grayscale levels, capable of showing over 160,000 colors.
6.2 By Display Effect
• Single Color Display: Typically shows simple text or graphics.
• Dual Color Display: Comprised of two colors.
• Full Color Display: Capable of showing a wide color gamut, simulating all computer colors.
6.3 By Usage Environment
• Indoor: Suitable for indoor environments.
• Outdoor: Equipped with waterproof, dustproof features for outdoor use.
6.4 By Pixel Pitch:

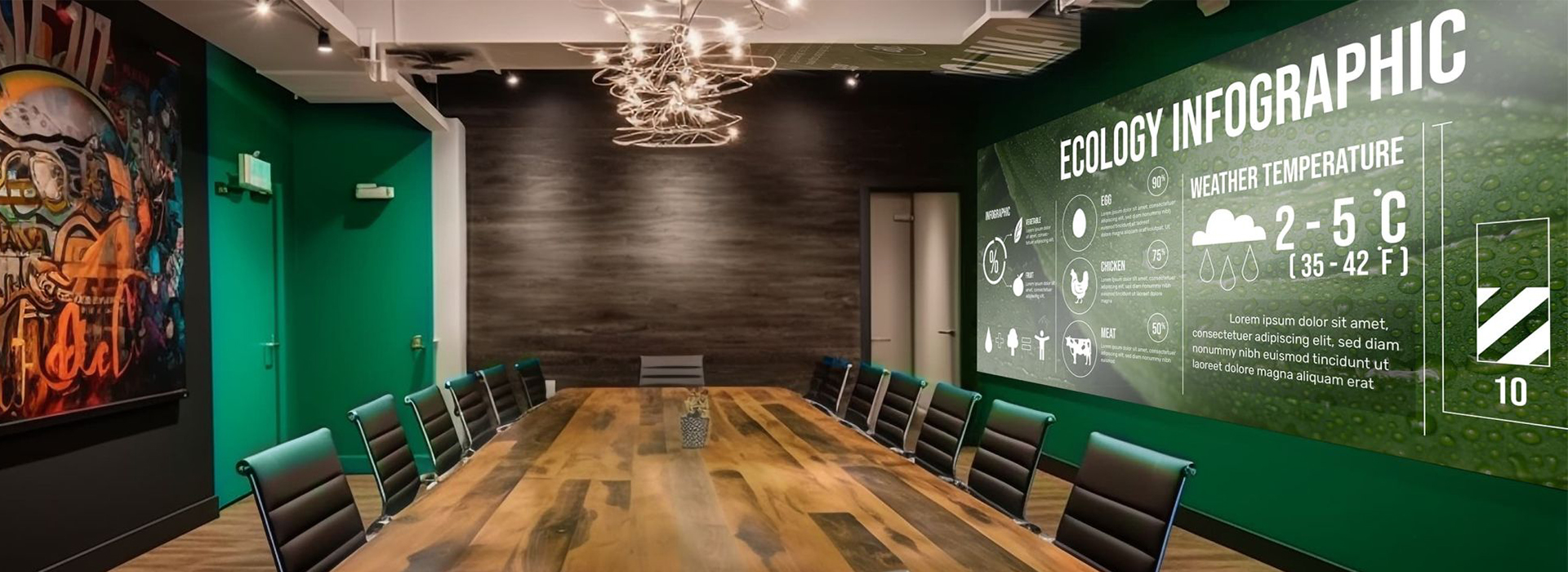

• ≤P1: 1mm pitch for indoor high-definition displays, suitable for close viewing, such as conference rooms and control centers.
• P1.25: 1.25mm pitch for high-resolution, fine image display.
• P1.5: 1.5mm pitch for high-resolution indoor applications.
• P1.8: 1.8mm pitch for indoor or semi-outdoor settings.
• P2: 2mm pitch for indoor settings, achieving HD effects.
• P3: 3mm pitch for indoor venues, offering good display effects at a lower cost.
• P4: 4mm pitch for indoor and semi-outdoor environments.
• P5: 5mm pitch for larger indoor and semi-outdoor venues.
• ≥P6: 6mm pitch for diverse indoor and outdoor applications, providing excellent protection and durability.
6.5 By Special Functions:
• Rental Displays: Designed for repeated assembly and disassembly, lightweight and space-saving.
• Small Pixel Pitch Displays: High pixel density for detailed images.
• Transparent Displays: Creates a see-through effect.

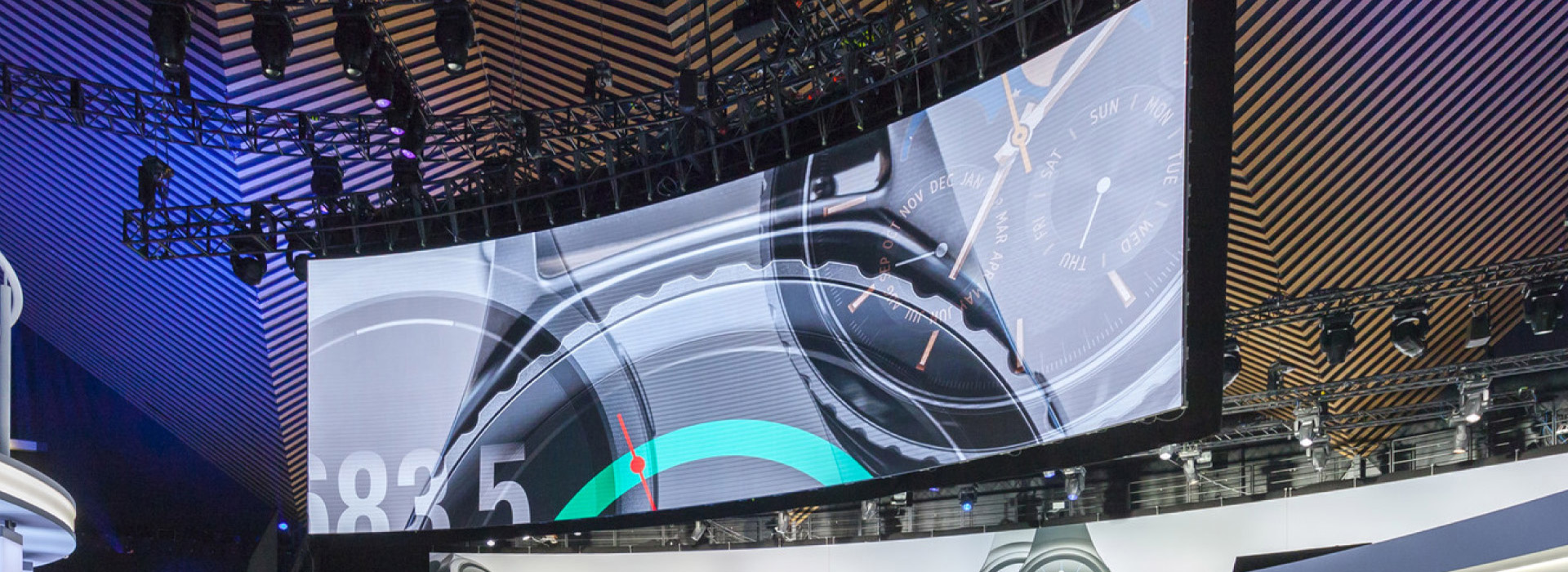

• Creative Displays: Custom shapes and designs, such as cylindrical or spherical screens.
• Fixed Install Displays: Traditional, consistent-sized displays with minimal deformation.
7. Application Scenarios of LED Display Screens
LED display screens have a wide range of applications:

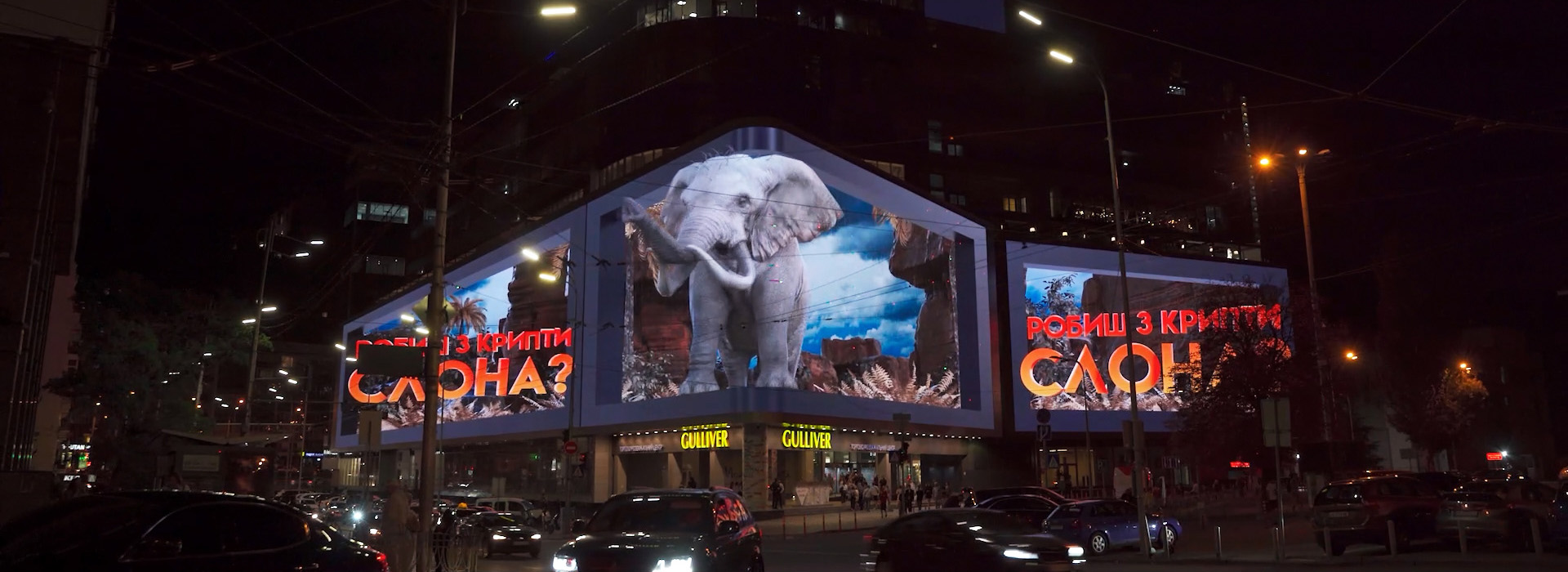

Commercial Advertising: Display ads and promotional information with high brightness and vibrant colors.

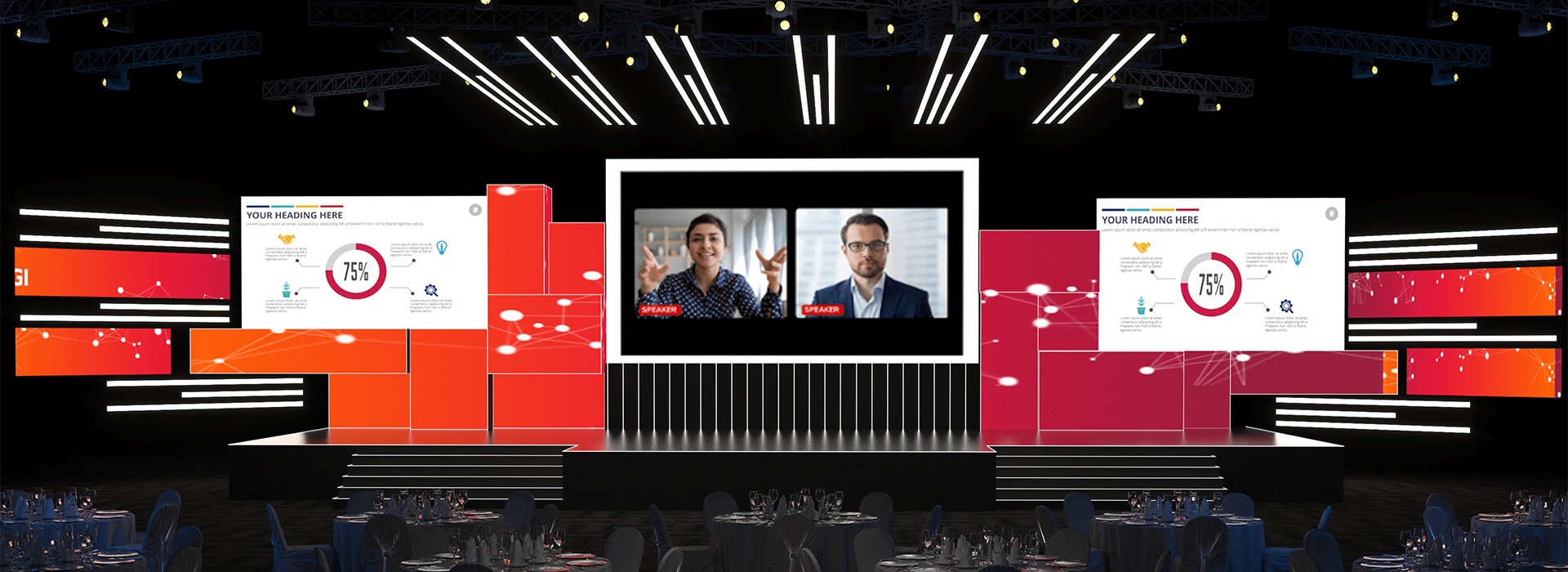

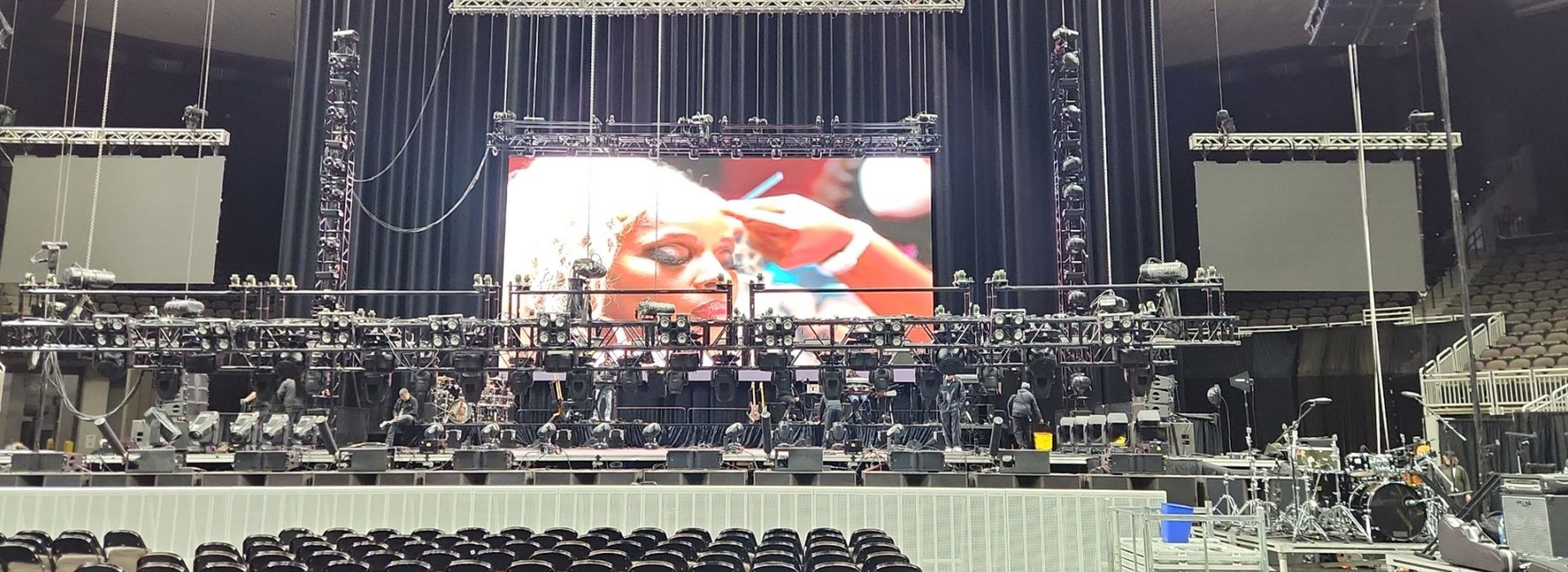

Cultural Entertainment: Enhance stage backgrounds, concerts, and events with unique visual effects.

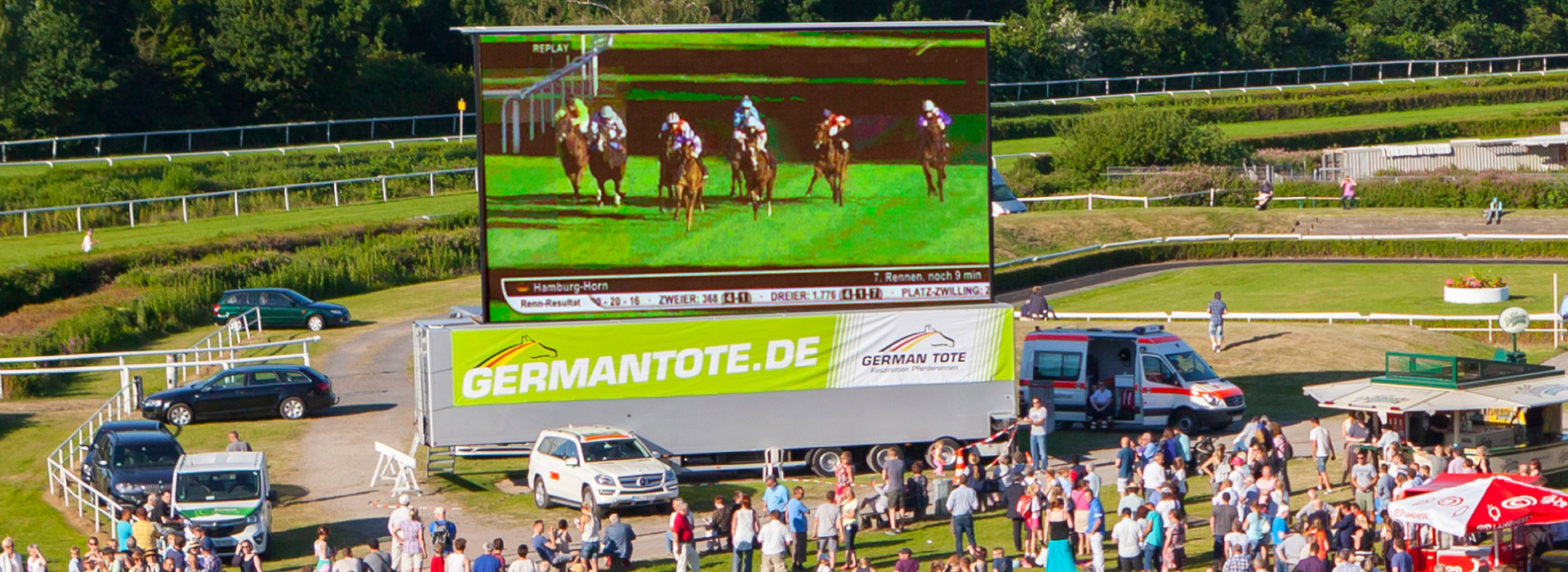

Sports Events: Real-time display of game information, scores, and replays in stadiums.
Transportation: Provide real-time information, signage, and ads in stations, airports, and terminals.
News and Information: Show news updates, weather forecasts, and public information.
Finance: Display financial data, stock quotes, and advertisements in banks and financial institutions.
Government: Share public announcements and policy information, enhancing transparency and credibility.
Education: Use in schools and training centers for teaching presentations, exam monitoring, and information dissemination.
8. Future Trends of LED Screen Wall
The future development of LED screen wall includes:
Higher Resolution and Full Color: Achieving greater pixel density and wider color gamut.
Intelligent and Interactive Features: Integrating sensors, cameras, and communication modules for enhanced interaction.
Energy Efficiency: Utilizing more efficient LEDs and optimized power designs.
Thin and Foldable Designs: Meeting diverse installation needs with flexible and portable displays.
IoT Integration: Connecting with other devices for smart information dissemination and automation.
VR and AR Applications: Combining with VR and AR for immersive visual experiences.
Large Screens and Splicing: Creating larger displays through screen splicing technology.
9. Installation Essentials for LED Display Screens
Key points to consider when installing LED display screens:
Determine screen size, location, and orientation based on room dimensions and structure.
Choose the installation surface: wall, ceiling, or ground.
Ensure waterproof, dustproof, heatproof, and short-circuit protection for outdoor screens.
Properly connect power and control cards, adhering to design specifications.
Implement professional construction for cable laying, foundational work, and structural frames.
Ensure tight waterproofing at screen joints and effective drainage.
Follow precise methods for assembling the screen frame and attaching unit boards.
Connect control systems and power supply lines correctly.
10. Common Issues and Troubleshooting
Common issues with LED display screens include:
Screen Not Lighting: Check power supply, signal transmission, and screen functionality.
Insufficient Brightness: Verify stable power voltage, LED aging, and driver circuit status.
Color Inaccuracy: Inspect LED condition and color matching.
Flickering: Ensure stable power voltage and clear signal transmission.
Bright Lines or Bands: Check for LED aging and cable issues.
Abnormal Display: Verify control card settings and signal transmission.
• Regular maintenance and timely troubleshooting can prevent these issues and ensure optimal performance.
11. Conclusion
LED display screens are a versatile and powerful tool for various applications, from commercial advertising to sports events and beyond. Understanding their components, working principles, features, classifications, and future trends can help you make informed decisions about their use and maintenance. Proper installation and troubleshooting are key to ensuring the longevity and effectiveness of your LED display screen, making it a valuable asset in any setting.
If you would like to know more or would like to have more in-depth knowledge about LED display wall, contact RTLED now.
