Sphere LED Display Installation & Maintenance Full Guide

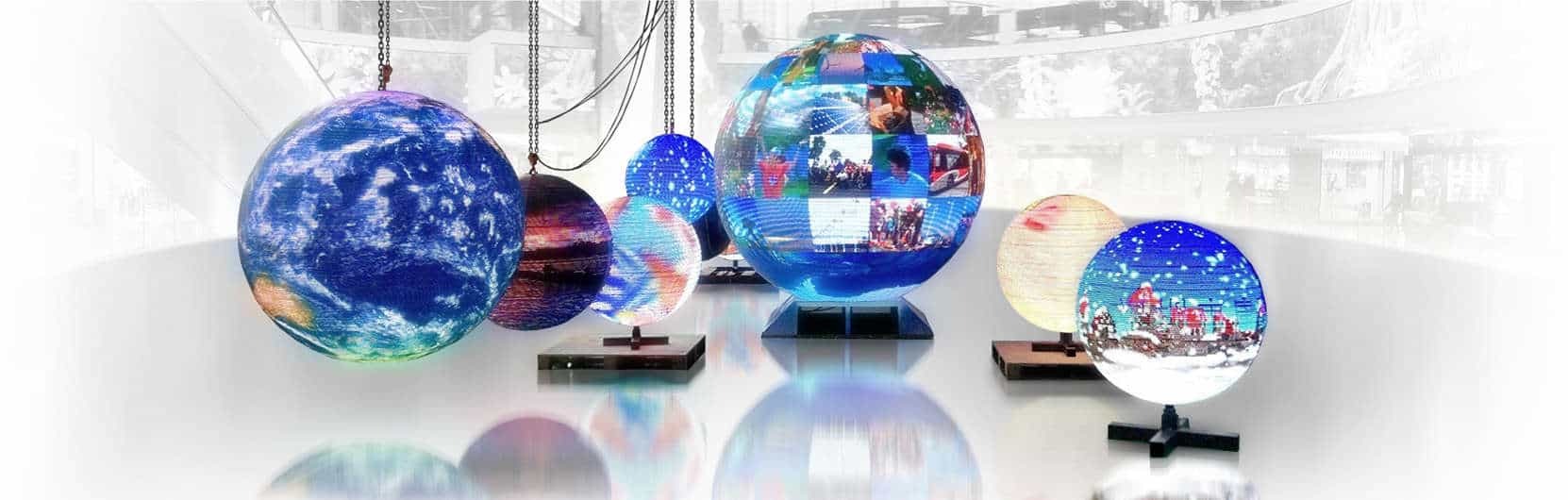

sphere led display

1. Introduction

Sphere LED display is a new type of display device. Due to its unique shape and flexible installation methods, its unique design and excellent display effect make information transmission more vivid and intuitive. Its unique shape and advertising effect have been widely used in various venues, commercial centers and other places. This article will discuss in detail how to install and maintain LED sphere display.

2. How to install your sphere LED display?

2.1 Preparation before installation

2.1.1 Site inspection

First, carefully inspect the site where the sphere LED display is to be installed. Determine whether the space size and shape of the site are suitable for installation, and ensure that there is enough space for the LED sphere display after installation and it will not be blocked by surrounding objects. For example, when installing indoors, it is necessary to measure the height of the ceiling and check the distance between the surrounding walls and other obstacles and the installation position; when installing outdoors, it is necessary to consider the bearing capacity of the installation point and the influence of surrounding environmental factors such as wind force and whether there is rain invasion on the display screen. At the same time, it is necessary to check the power supply situation at the installation position, confirm whether the power supply is stable, and whether the voltage and current parameters meet the power consumption requirements of the spherical LED display.

2.1.2 Material preparation

Prepare all the components of the sphere LED display, including the sphere frame, LED display module, control system, power supply equipment and various connection wires. During the preparation process, you need to check whether these components are intact and whether the models match each other. In addition, according to the actual installation needs, prepare the corresponding installation tools, such as screwdrivers, wrenches, electric drills and other common tools, as well as expansion screws, bolts, nuts, gaskets and other auxiliary installation materials.

2.1.3 Safety guarantee

The installers must be equipped with necessary safety protection equipment, such as safety helmets, seat belts, etc., to ensure personal safety during the installation process. Set up obvious warning signs around the installation site to prevent irrelevant personnel from entering the installation area and avoid accidents.

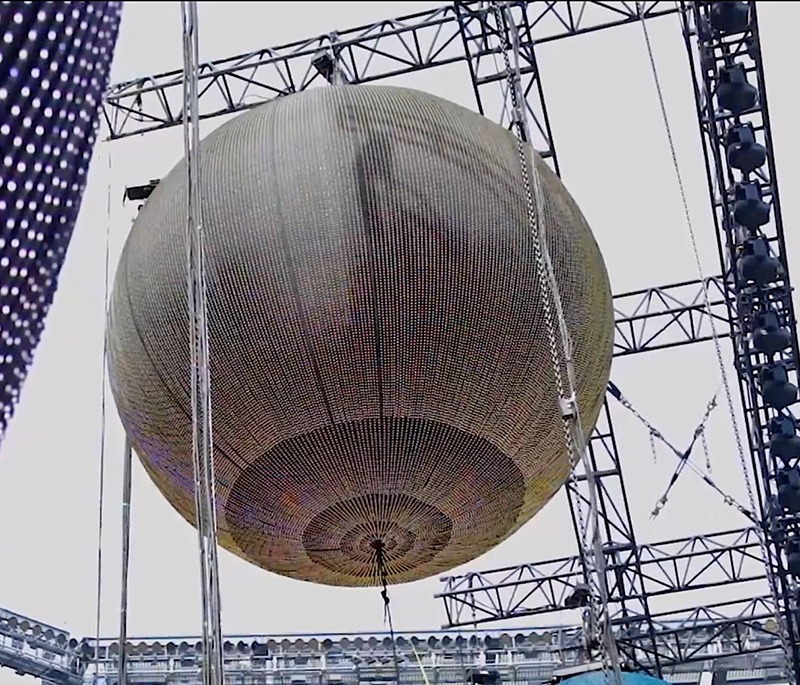

sphere led display screen

2.2 Installation steps

2.2.1 Fixing the sphere frame

According to the site conditions and the size of the sphere, choose the appropriate installation method, commonly including wall-mounted, hoisting, and column-mounted.
Wall-mounted installation
You need to install a fixed bracket on the wall and then firmly fix the sphere frame on the bracket;
Hoisting installation
You need to install a hook or hanger on the ceiling and suspend the sphere through a suitable rope, etc., and pay attention to ensuring the stability of the suspension;
Column-mounted installation
You need to install the column first and then fix the sphere on the column. When fixing the sphere frame, use connectors such as expansion screws and bolts to reliably fix it on the installation position to ensure that the sphere will not shake or fall during subsequent use. At the same time, it is necessary to strictly ensure the installation accuracy of the sphere in the horizontal and vertical directions.

2.2.2 Installing the LED display module

Install the LED display modules on the sphere frame in sequence according to the design requirements. During the installation process, pay special attention to the splicing tightness between the modules to ensure seamless connection between each module to achieve continuous and complete display pictures. After the installation is completed, use the connection wire to connect each LED display module. When connecting, be sure to pay attention to the correct connection method and order of the connection wire to prevent the display screen from not working normally due to wrong connection. At the same time, the connection wire should be properly fixed and protected to avoid being pulled or damaged by external forces during use.

2.2.3 Connecting the control system and power supply

Connect the control system with the LED display module to ensure stable and accurate signal transmission. The installation position of the control system should be selected in a place that is convenient for operation and maintenance, and corresponding protection measures should be taken to prevent it from being affected by external interference and affecting normal operation. Then, connect the power supply equipment with the spherical display screen to provide stable power support. When connecting the power supply, pay special attention to whether the positive and negative poles of the power supply are connected correctly, because once reversed, the display screen may be damaged. After the connection is completed, the power line should be properly arranged and fixed to prevent potential safety hazards such as leakage.

2.2.4 Debugging and testing

After the installation is completed, conduct a comprehensive debugging and testing of the spherical display screen. First, check whether the hardware connection of the display screen is normal, including whether the connections between various components are firm and whether the lines are unobstructed. Then, turn on the power supply and control system and test the display effect of the display screen. Focus on checking whether the display picture is clear, whether the color is accurate, and whether the brightness is uniform. If any problems are found, they should be immediately investigated and repaired to ensure that the display screen can work normally.

2.3 Post-installation acceptance

a. Conduct a strict acceptance of the overall installation quality of the sphere LED display. Mainly check whether the sphere is firmly fixed, whether the installation effect of the display module meets the requirements, and whether the control system and power supply are operating normally. Ensure that the installation of the LED sphere screen fully meets the design requirements and relevant standard specifications.
b. Conduct a long-term trial operation to observe the performance of the display screen in different working states. For example, check whether the display screen can operate stably after continuous operation for a period of time; frequently turn on and off the display screen to check whether there are abnormal conditions during the startup and shutdown processes. At the same time, pay close attention to the heat dissipation situation of the display screen to ensure that it will not cause faults due to overheating during operation.
c. After passing the acceptance, fill in the installation acceptance report. Record in detail various information during the installation process, including installation steps, materials and tools used, problems encountered and solutions, and acceptance results. This report will be an important basis for subsequent maintenance and management.

led sphere display

3. How to maintain the sphere LED display in the later period?

3.1 Daily maintenance

Cleaning and maintenance

Regularly clean the sphere LED display to keep its surface clean. When cleaning, use a soft dry cloth or a special vacuum cleaner to gently wipe the surface of the display screen to remove dust, dirt and debris. It is strictly prohibited to use a wet cloth or a cleaner containing corrosive chemicals to avoid damaging the coating on the surface of the display screen or the LED lamp beads. For the dust inside the display screen, a hair dryer or a professional dust removal device can be used for cleaning, but pay attention to the strength and direction during the operation to avoid damage to the internal components of the display screen.

Checking the connection line

Regularly check whether the connection of the power cord, signal line, etc. is firm, whether there is damage or aging, and whether there is damage to the wire tube and wire trough. Deal with problems in time.

Checking the operation status of the display screen

During daily use, pay attention to observing the operation status of the sphere LED display. Such as whether there are abnormal phenomena such as black screen, flickering, and flower screen. Once an abnormality is found, the display screen should be immediately turned off and detailed investigation and repair should be carried out. In addition, it is necessary to regularly check whether the brightness, color and other parameters of the display screen are normal. If necessary, they can be appropriately adjusted and optimized through the control system to ensure the best display effect.

3.2 Regular maintenance

Hardware maintenance

Regularly check the hardware such as LED display module, control system, power supply equipment, replace or repair faulty components, and pay attention to model matching.

Software maintenance

Upgrade the control system software according to the manufacturer’s guidelines, manage the playback content, clean up expired files and data, and pay attention to legality and security.

3.3 Special situation maintenance

Maintenance in severe weather

In case of severe weather such as strong wind, heavy rain, and thunder and lightning, in order to ensure the safety of the sphere LED display, the screen should be turned off in time and corresponding protection measures should be taken. For example, for wall-mounted or hoisted display screens, it is necessary to check whether the fixing device is firm and reinforce it if necessary; for the sphere LED screen installed outdoors, it is necessary to cut off the power supply to prevent the display screen from being damaged by thunder and lightning. At the same time, it is necessary to take waterproof measures to avoid rainwater from entering the interior of the LED sphere display and causing circuit short-circuit and other faults.

led sphere display

4. Conclusion

This article has elaborated on the installation methods and subsequent maintenance approaches of the sphere LED display in detail. If you are interested in the spherical LED display, please contact us immediately. As an LED display supplier with more than ten years of experience, RTLED will provide you with the best service.
