Choosing the right LED display size is critical for maximizing visual impact and cost efficiency. Below we break down every aspect of LED screen sizing to help you make an informed choice.
1. What Is the Standard LED Display Size?
There is no universal “standard” size for LED displays. Instead, screen dimensions are tailored to specific use cases. Common categories include:

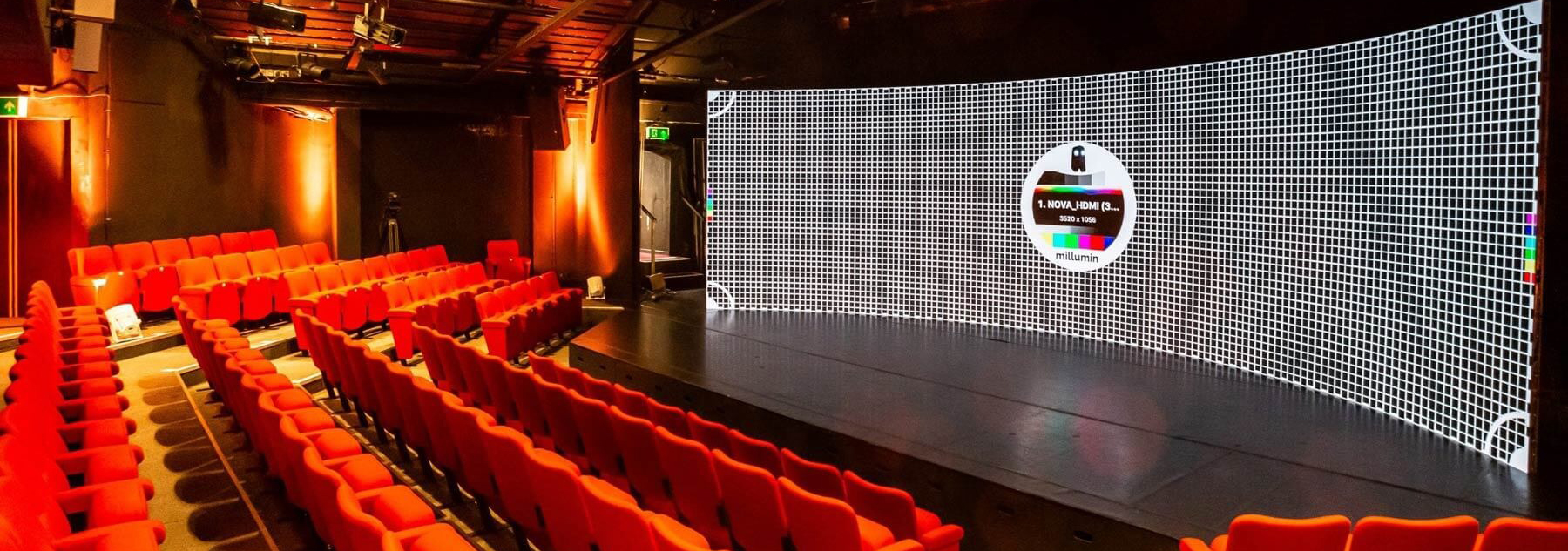

Indoor displays: 3m x 2m (small conference rooms) to 10m x 5m (concert stages).

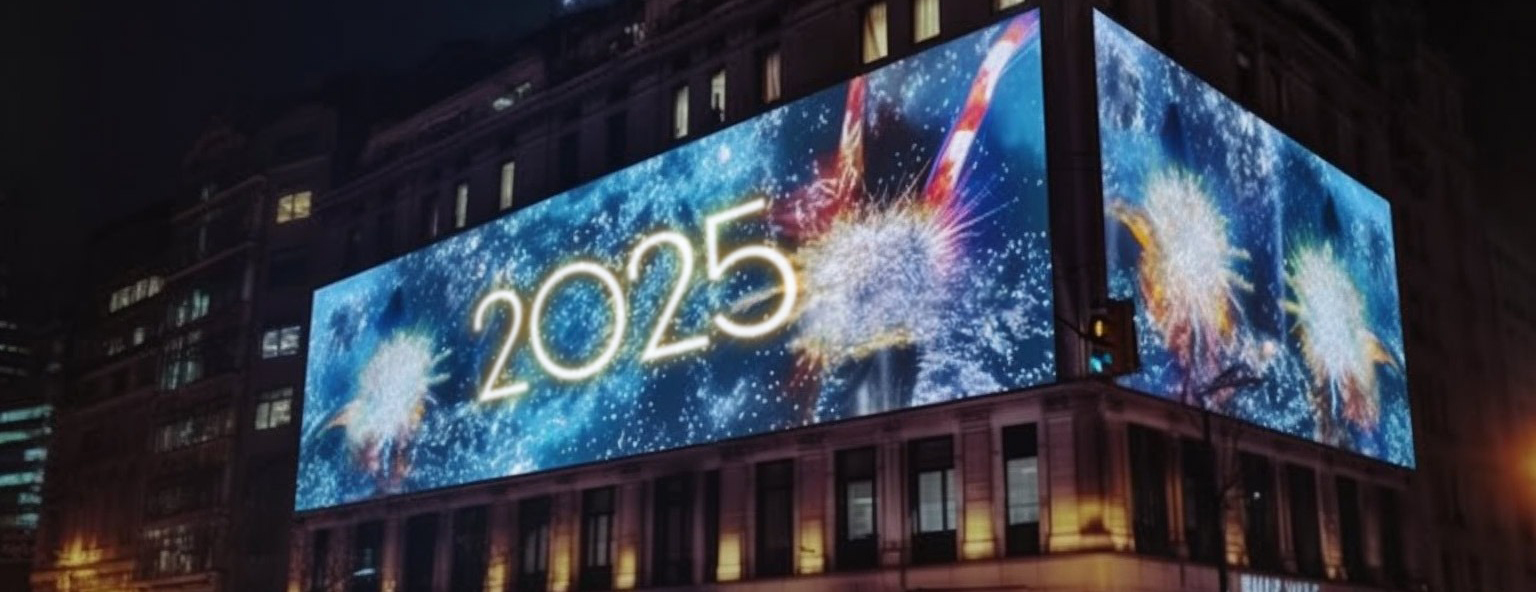

Outdoor displays: 5m x 3m (storefronts) to 20m x 10m+ (stadiums/billboards).
Fixed aspect ratios: 16:9 (common for video content) or custom ratios for architectural installations.
2. Why Is It Important to Know the Standard LED Display Size?
Selecting the right size directly impacts:
Audience engagement: A screen too small for a stadium will fail to captivate distant viewers.
Cost management: Oversizing wastes budget; undersizing requires costly retrofits.
Content clarity: Poor sizing leads to pixelation or distorted visuals.
Installation feasibility: Structural limitations (e.g., wall space, weight capacity) may restrict options.
3. How to Determine the Best LED Display Size for Your Application
Step 1: Define Your Use Case
Retail/Restaurants: Smaller screens (2–5m²) for menus or promotions.
Events/Stages: Large modular setups (10–50m²) for dynamic visuals.
Control Rooms: Ultra-high-resolution panels (1–3mm pixel pitch) for detailed data.
Billboards: Massive displays (50–200m²) optimized for long-distance viewing.
Step 2: Calculate Using Key Metrics
Minimum Viewing Distance = Pixel Pitch (mm) × 1,000
(Example: A P3 screen has a minimum viewing distance of 3 meters.)
Ideal Screen Height = Viewing Distance ÷ 4
(Example: For a 20m viewing distance, aim for a 5m-tall screen.)
4. Key Factors Affecting Your LED Screen Size Choice
Factor 1: Resolution
Higher resolution (4K/8K) requires larger screens or smaller pixel pitches.
Balance resolution with budget: A 4K 10m² screen costs 2–3× more than an HD equivalent.

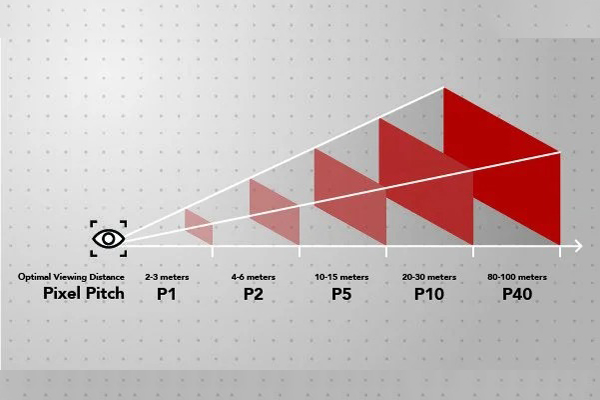

Factor 2: Pixel Pitch
Indoor: P1.2–P4 (detailed close-up viewing).
Outdoor: P5–P20 (optimized for visibility at 10–100m distances).
Factor 3: Viewing Distance
Formula: Screen Height × 6 = Maximum Effective Viewing Distance.
A 3m-high screen is ideal for audiences within 18 meters.
Factor 4: Budget
Cost drivers: Size, resolution, brightness (nits), and installation complexity.
Outdoor screens cost 30–50% more due to weatherproofing and higher brightness (5,000–10,000 nits).
Factor 5: Installation Location
Indoor: Prioritize pixel density (P1.2–P3) and lower brightness (800–1,500 nits).
Outdoor: Focus on durability, high brightness, and larger pixel pitches (P5+).
5. Standard LED Screen Sizes and Applications
Application Typical Size Range Pixel Pitch Brightness
Retail Kiosks 1m x 0.5m – 3m x 2m P1.5–P3 800–1,500 nits
Conference Rooms 3m x 2m – 6m x 3m P1.2–P2.5 1,000–2,000 nits
Stadium Jumbotrons 10m x 5m – 20m x 10m P6–P10 6,000–10,000 nits
Highway Billboards 15m x 5m – 30m x 10m P10–P20 8,000–12,000 nits
6. How to Choose the Right LED Screen Size
Audit Your Space: Measure installation area and check weight limits.
Test with Mockups: Use projectors or digital simulations to visualize size.
Consult Specialists: Work with integrators to balance technical specs and budget.
Prioritize Flexibility: Modular LED panels allow for future resizing.
7. Conclusion
LED screen sizing is a strategic decision requiring alignment of technical specs, audience needs, and budget. Use the formulas and examples above to narrow your options, and always validate choices with real-world testing. For large-scale projects, phased installations or rental solutions can mitigate risks.
By understanding pixel pitch, viewing distance, and use-case requirements, you’ll ensure your LED display delivers maximum ROI—whether it’s a compact retail screen or a jaw-dropping stadium centerpiece.
