How to Determine How Many LEDs Are in My Video Wall

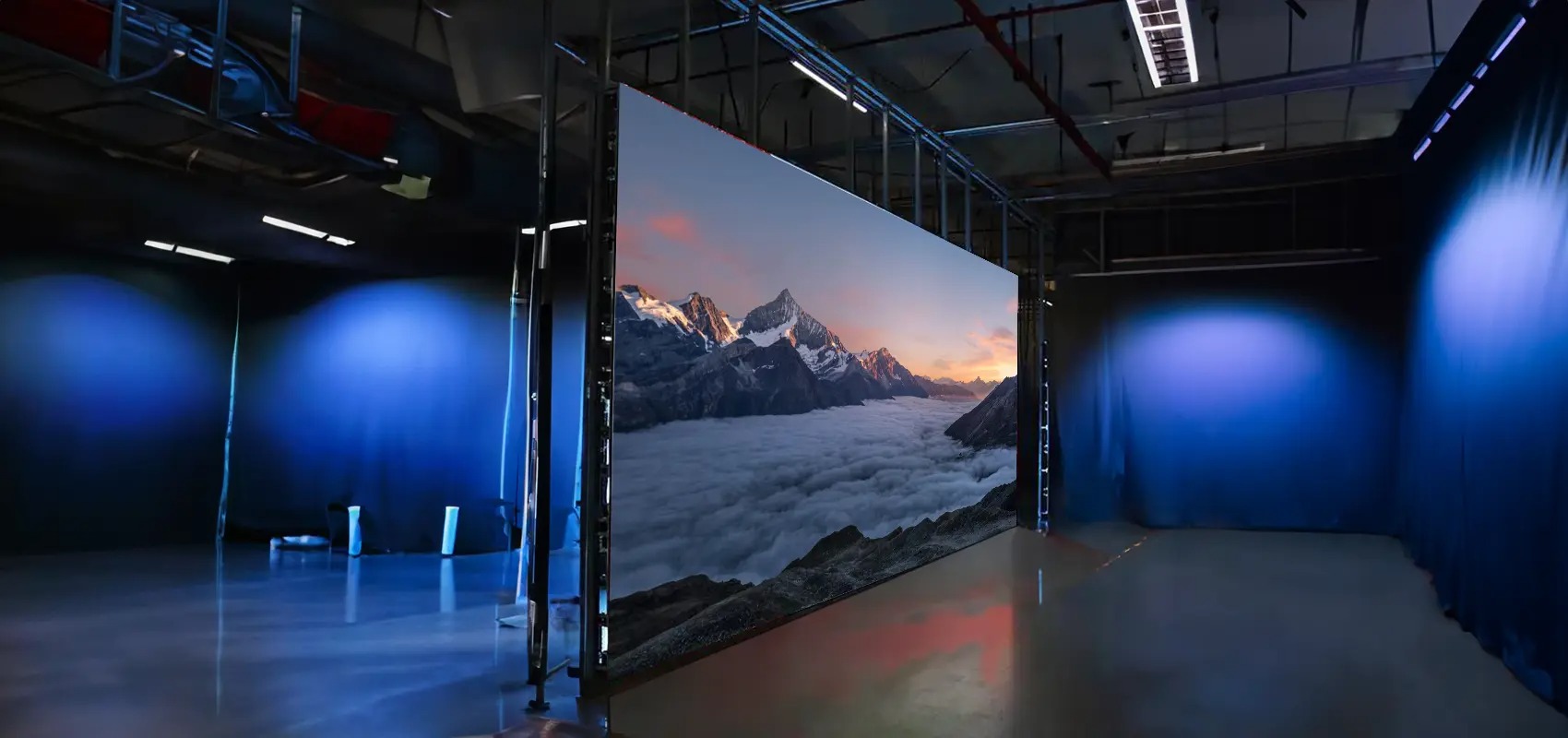

led video wall

1. Why LED Count Matters?

In modern society, LED video walls are widely used in advertising displays, stage performances, sports stadiums, meeting rooms and other fields. Whether it’s a large concert or a commercial advertisement, the visual effect of the LED video wall plays a vital role. Among all the factors that affect the display effect of the video wall, the number of LEDs is undoubtedly one of the most fundamental and important ones.

RTLED frequently receives inquiries from customers regarding how to figure out the actual number of LED lights employed in the video wall. Comprehending the quantity of LEDs is not merely for verifying the display effect of the video wall but also associated with multiple aspects including power consumption, maintenance, cost budgeting and future upgrades. This article will offer a detailed account of how to calculate the number of LEDs in a video wall and explore the key factors related to it.

2. Basic Components of an LED Video Wall

LED video walls are usually formed by splicing multiple LED panels, and each LED panel contains thousands of LED lights. Specifically, the composition of the video wall includes the following key parts:

LED panels: Each panel consists of thousands of LED lights. The size and pixel density of the panel will directly affect the resolution and display effect of the video wall.

Pixel Pitch: This is a key factor that determines the resolution and clarity of the LED display. Common pixel pitches include P1.9, P3.91, etc. The smaller the number, the finer the display.

LED type: Common LED types include SMD (Surface Mount Diode) and COB (Chip on Board). The SMD type is suitable for most video walls because its brightness and color performance are relatively uniform.

These components will not only affect the display effect of the video wall but also directly affect the parameters required for calculating the number of LEDs.

3. How to Calculate LEDs of Video Wall

Calculating Total Pixel Count

Suppose the screen size is 3 meters x 3 meters (i.e., 3000mm x 3000mm), and the pixel pitch is P2.604 (i.e., the distance between each LED light is 2.604 millimeters).

The number of pixels in the horizontal direction = screen width (3000mm) / pixel pitch (2.604mm) = 3000mm / 2.604mm ≈ 1152 pixels

The number of pixels in the vertical direction = screen height (3000mm) / pixel pitch (2.604mm) = 3000mm / 2.604mm ≈ 1152 pixels

So, the total number of pixels on the screen is: 1152 x 1152 = 1,326,604 pixels.

Calculating LED Count

In this case, each pixel is realized by one LED light, so the total number of LEDs in the video wall is equal to the total number of pixels.

Therefore, there are approximately 1,326,604 LEDs in the video wall.

Calculating LED Panel Quantity

LED video walls are formed by splicing multiple LED panels. The size and resolution of the panel determine how many LEDs are included in each panel. Suppose the size of each panel is 500mm x 500mm, and the resolution of each panel is 128 x 128 pixels (i.e., each panel contains 16,384 LED lights). Then, we can calculate the number of panels required for the video wall in the following way:

The area of each panel = 0.5m x 0.5m = 0.25 square meters

The total area of the video wall = 3m x 3m = 9 square meters

The number of required panels = 9 square meters / 0.25 square meters = 36 panels

Therefore, there are 36 panels in the video wall. Each panel has 16,384 LEDs, and there are a total of 589,824 LEDs in the entire video wall.

Through this way, we can accurately calculate the number of LEDs in the video wall.

4. The impact of the number of LEDs on the display effect

Resolution and visual effect

The number of LEDs directly determines the resolution and display effect of the video wall. A higher pixel density means a higher resolution and can display clearer and more detailed image and video content. If your video wall is used for advertising display, a higher pixel density can attract more viewers’ attention, especially when viewed at a close distance.

Brightness and color performance

The number of LEDs also affects the brightness and color performance of the display. More LED lights can provide a more uniform light source distribution and reduce the situation of uneven brightness. For stage performances, sports competitions and other application scenarios, the uniformity of brightness and color is particularly important.

Viewing angle and viewing distance

An increase in the number of LEDs usually improves the viewing angle of the screen. In large-scale outdoor or indoor applications, a reasonable LED layout can ensure that viewers can obtain a clear and bright display effect no matter where they stand.

5. LED Panel Layout & Design Considerations

Splicing method

Video walls are usually formed by splicing multiple LED panels. Common splicing methods include straight splicing and curved splicing. Different splicing methods require that the LED lights between the panels can be closely connected physically to avoid affecting the display effect. When selecting LED panels, the border design and splicing accuracy of the panels must be considered.

Selection for different application scenarios

Advertising application: Usually requires higher brightness and color reproduction. It is suitable to choose a smaller pixel pitch (such as P2.6, P3.91, etc.) and more LEDs.

Stage performance: Requires a better viewing angle and brightness uniformity. The number and layout of LEDs should ensure a good display effect from different angles.

Meeting rooms and exhibition centers: Require higher detail clarity. It is suitable to choose a video wall with a higher resolution.

6. LED Count and Power Consumption, Maintenance

Power consumption calculation

An increase in the number of LEDs means an increase in power consumption. The power consumption of each LED light is usually between 0.1W and 0.5W, depending on the type of LED and the brightness setting of the screen. When selecting a video wall, it is necessary to comprehensively consider the number of LEDs and power consumption to ensure that it meets the power supply and heat dissipation requirements.

Maintenance and replacement

Video walls with a large number of LEDs may require more time and higher costs for maintenance, especially when a single LED fails. Selecting high-quality LED panels, a reasonable layout design and regular maintenance are the keys to ensuring the long-term stable operation of the video wall.

7. LED Count and Budget Considerations

Budget consideration

The number of LEDs directly affects the cost of the video wall. If the budget is limited, choosing a video wall with a larger pixel pitch (such as P5, P6) can reduce the number of LEDs and thus reduce the overall cost. If the budget is sufficient, choosing a screen with a higher pixel density can ensure a higher display quality.

Selecting an appropriate pixel pitch

Select an appropriate pixel pitch according to the application scenario to ensure the best visual effect. For example, for indoor advertising and display, P3 or P3.91 is a common choice; for large-scale outdoor advertising, a pixel pitch of P6 or P8 may be selected.

8. Summary and suggestions

Understanding the number of LEDs in a video wall is not only for calculating its display effect but also for making more reasonable procurement and installation decisions. By mastering the basic calculation method, you can ensure the selection of appropriate pixel pitch, reasonable number of LEDs and avoid unnecessary waste during the project implementation.

9. FAQ

9.1 How to choose an appropriate pixel pitch?

For short-distance viewing, choose a smaller pixel pitch; for long-distance viewing, a larger pixel pitch can be chosen.

9.2Will a screen with more LEDs affect the price?

Yes, the number of LEDs directly affects the cost of the video wall. A video wall with a higher pixel density has more LEDs and thus a relatively higher price.

9.3 What is the relationship between the number of LEDs and power consumption?

An increase in the number of LEDs means an increase in power consumption. Therefore, when selecting a video wall, it is necessary to comprehensively consider power consumption and power supply issues.
