1. Introducion
Full color LED screen use red, green, blue light-emitting tubes, each tube each 256 levels of gray scale constitutes 16,777,216 kinds of colors. Full color led display system, using today’s latest LED technology and control technology, so that the full color LED display price is lower, more stable performance, lower power consumption, higher unit resolution, more realistic and rich colors, less electronic components when the composition of the system, making the failure rate reduced.
2. Features of full colour LED screen
2.1 High Brightness
Full-colour LED display can provide high brightness so that it can still be clearly visible under strong light environment, which is suitable for outdoor advertising and public information display.
2.2 Wide colour range
Full colour LED display has a wide range of colours and high colour accuracy, ensuring a realistic and vivid display.
2.3 High energy efficiency
Compared with traditional display technologies, LED displays consume less energy and have good energy efficiency.
2.4 Durable
LED displays usually have a long service life and strong weather resistance, suitable for a variety of environmental conditions.
2.5 High flexibility
Full-colour LED displays can be customised to suit a wide range of display needs in a variety of sizes and shapes.
3. Four main accessories of full color LED screen

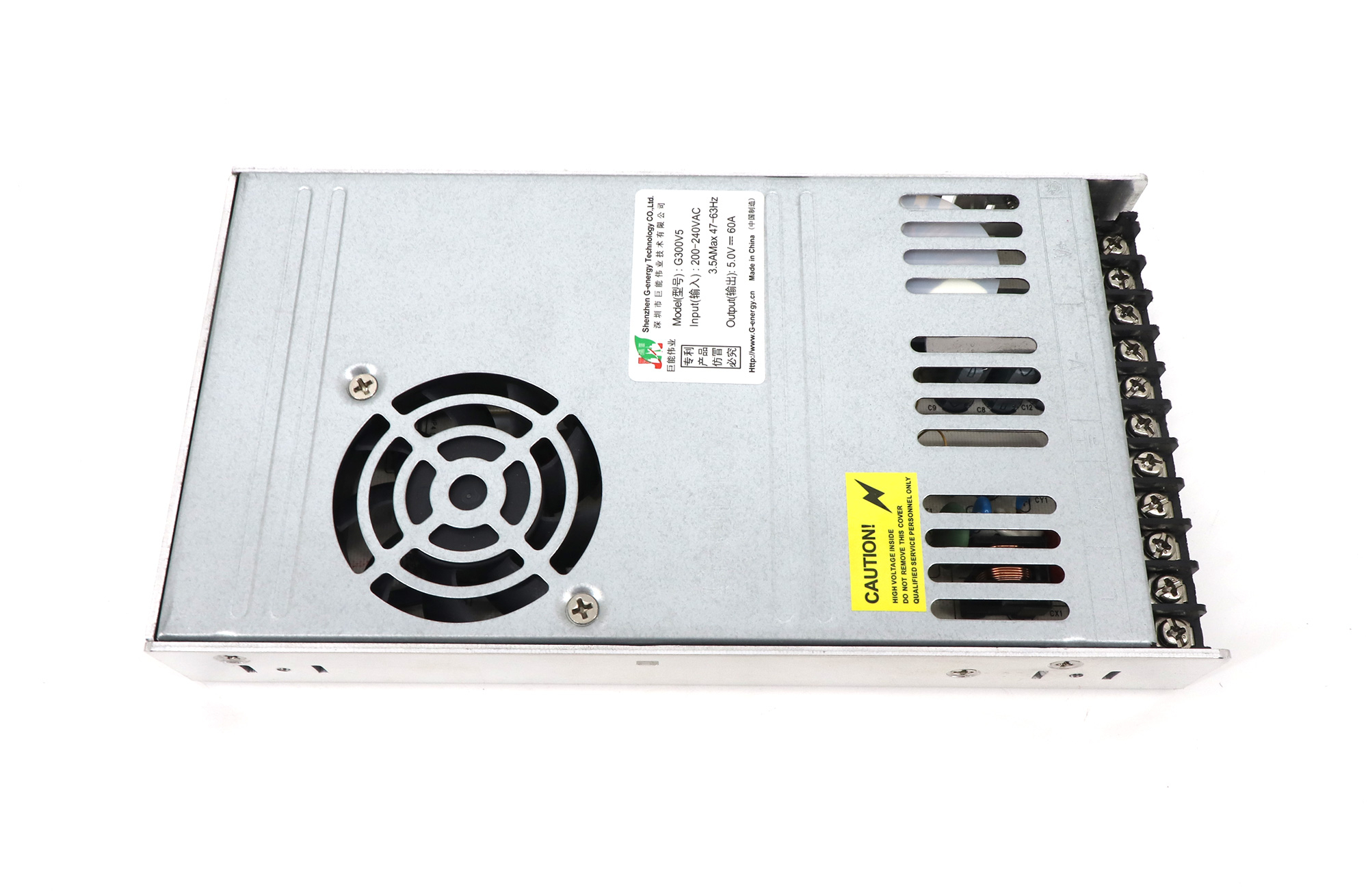

3.1 Power supply
Power supply plays a vital role in LED display. With the rapid growth of the LED industry, the demand for power supply is also increasing. The stability and performance of the power supply determines the performance of the display. The power supply required for full-colour LED display is calculated according to the power of the unit board, and different models of the display require different power supplies.

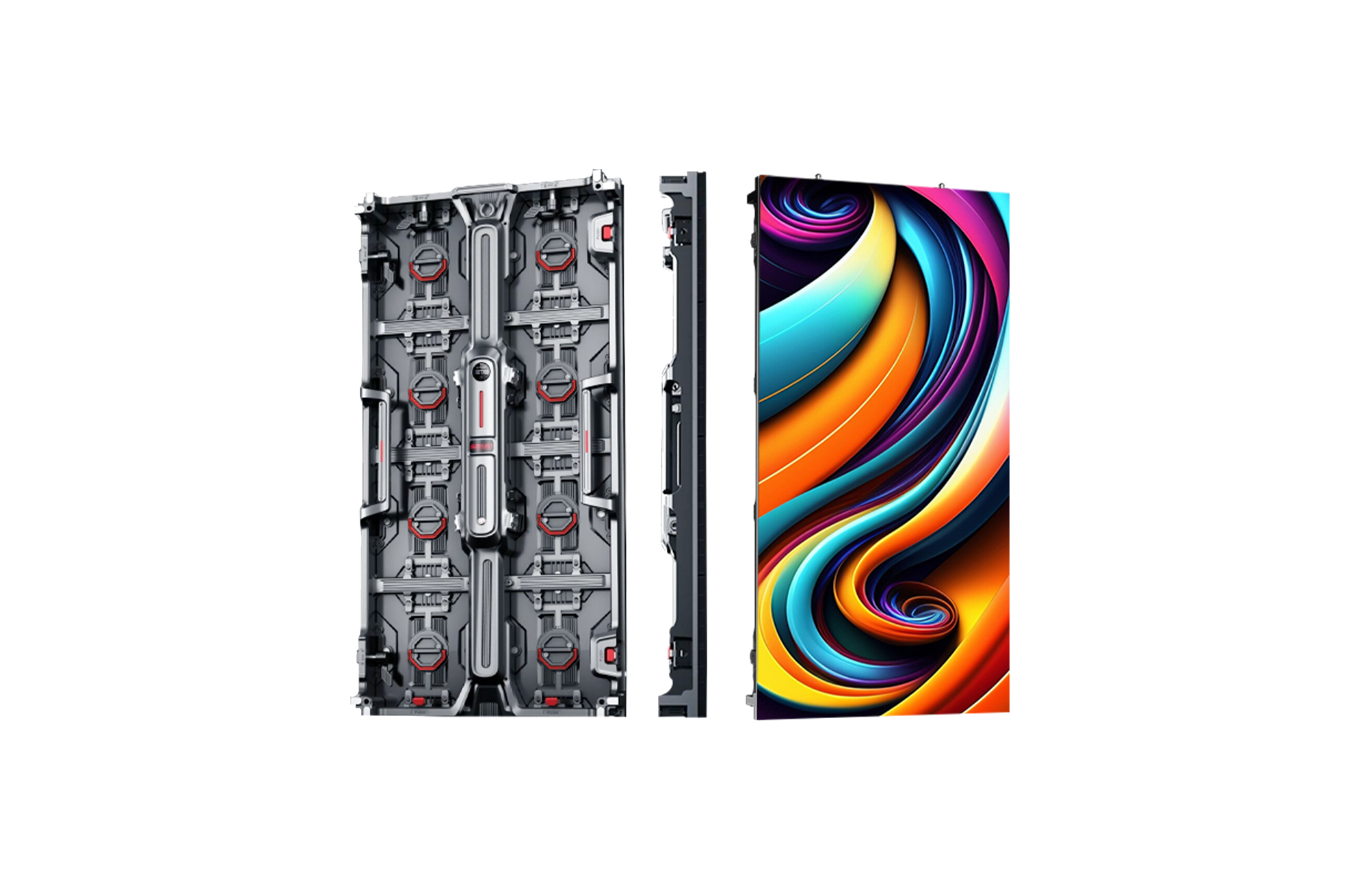

3.2 Cabinet
Cabinet is the frame structure of the display, composed of multiple unit boards. A complete display is assembled by a number of boxes. Cabinet has two kinds of simple cabinet and waterproof cabinet, the rapid development of the LED industry, the production of cabinet manufacturers almost every month order saturation, promoting the development of this industry.

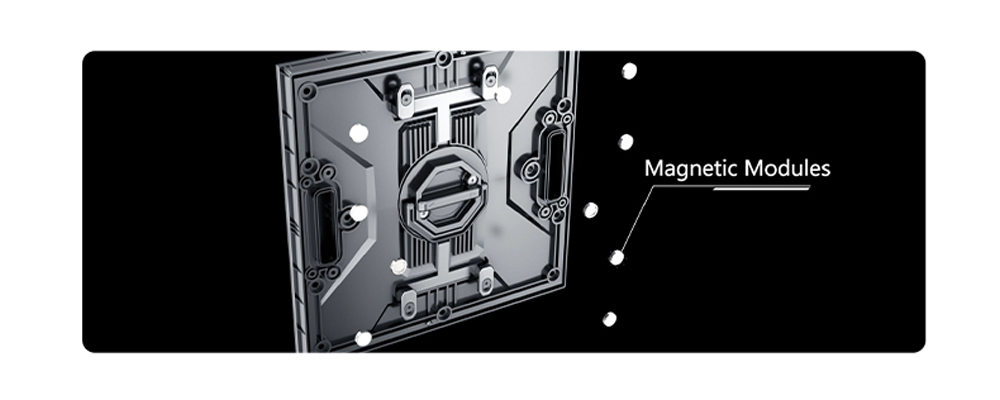

3.3 LED Module
LED module is composed of kit, bottom case and mask, is the basic unit of full-colour LED display. Indoor and outdoor LED display modules differ in structure and characteristics, and are suitable for different application scenarios.

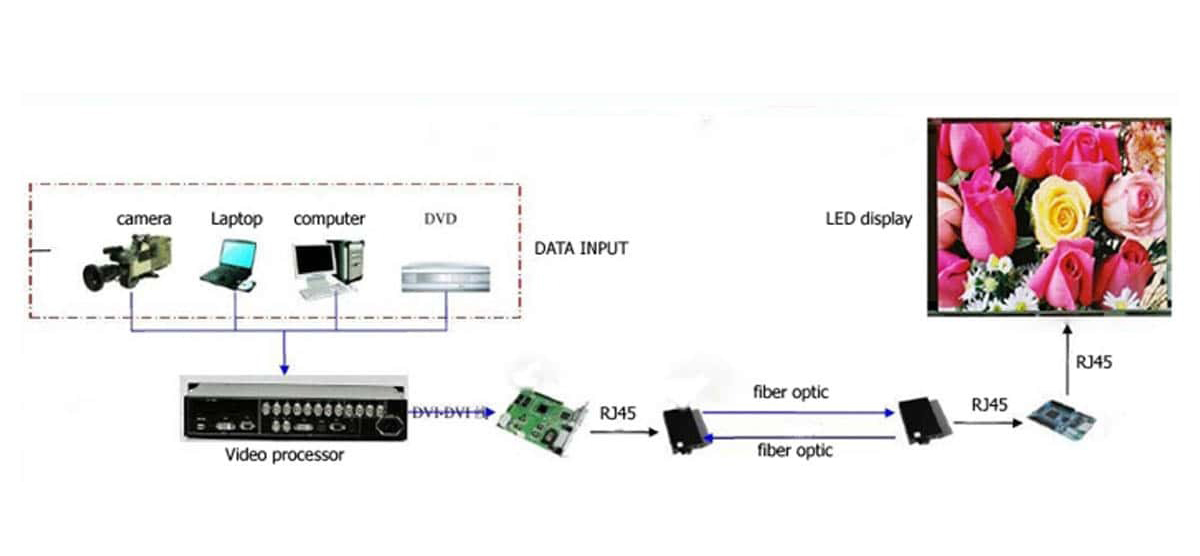

3.4 Control system
Control system is an important part of the full-colour LED display, responsible for the transmission and processing of video signals. The video signal is transmitted to the receiving card through the sending card and graphics card, and then the receiving card transmits the signal to the HUB board in segments, and then transmits it to each LED module of the display through the row of wires. The control system of indoor and outdoor LED display has some differences due to different pixel points and scanning methods.
4. Viewing angle of full colour LED screen

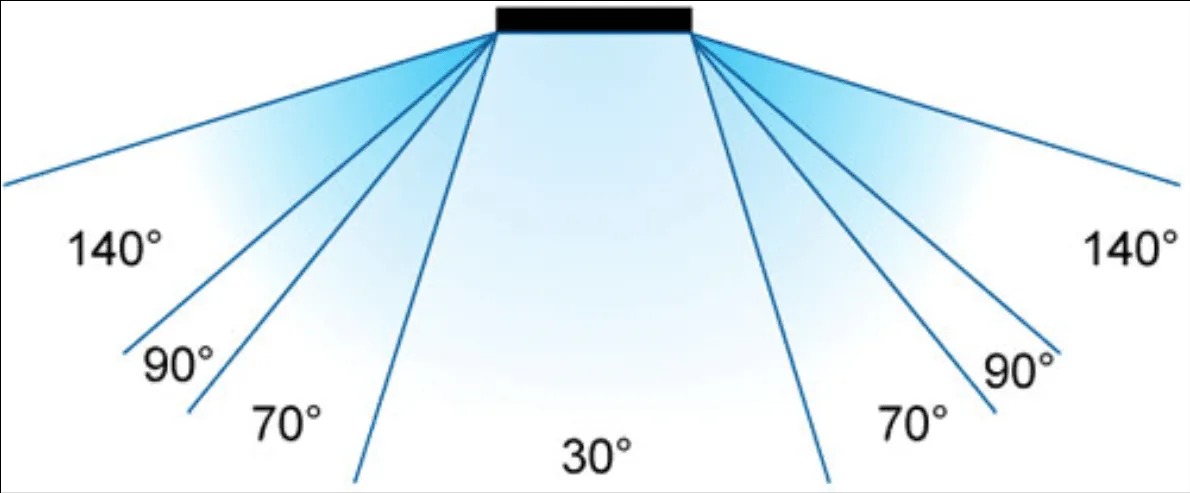

4.1 the definition of visual angle
Full color LED screen viewing angle refers to the angle at which the user can clearly observe all the contents on the screen from different directions, including horizontal and vertical two indicators. Horizontal viewing angle is based on the screen vertical normal, in the left or right within a certain angle can normally see the scope of the display image; Vertical viewing angle is based on the horizontal normal, above or below a certain angle can normally see the scope of the display image.
4.2 the influence of factors
The larger the viewing angle of the full-colour LED display, the wider the visual range of the audience. But the visual angle is mainly determined by the LED tube core encapsulation. Encapsulation method is different, the visual angle is also different. In addition, the viewing angle and distance also affect the viewing angle. The same chip, the larger the viewing angle, the lower the brightness of the display.
5. Full colour LED screen pixels out of control
Pixel loss of control mode has two kinds:
One is the blind point, that is, blind point, in the need to light when it does not light, called blind point;
Secondly, it is always bright point, when it needs not to be bright, it has been bright, called often bright point.
In general, the common LED display pixel composition of 2R1G1B (2 red, 1 green and 1 blue lights, the same below) and 1R1G1B, and out of control is generally not the same pixel in the red, green and blue lights at the same time all out of control, but as long as one of the lamps is out of control, we that is, the pixel is out of control. Therefore, it can be concluded that the main reason for the loss of control of full-colour LED display pixels is the loss of control of LED lights.
Full color LED screen pixel loss of control is a more common problem, the performance of the pixel work is not normal, divided into two types of blind spots and often bright spots. The main reason for the pixel point out of control is the failure of LED lights, mainly including the following two aspects:
LED quality problems:
The poor quality of the LED lamp itself is one of the main reasons for the loss of control. Under high or low temperature or rapid temperature change environment, the stress difference inside the LED can lead to runaway.
Electrostatic discharge:
Electrostatic discharge is one of the complex causes of runaway LEDs. During the production process, equipment, tools, utensils and the human body may be charged with static electricity, electrostatic discharge may lead to LED-PN junction breakdown, which will trigger the runaway.
At present, RTLED LED display in the factory will be aging test, the loss of control of the pixel of the LED lights will be repaired and replaced, “the whole screen pixel loss of control rate” control within 1/104, “regional pixel loss of control rate” control in 3/104 Within the “whole screen pixel out of control rate” control within 1/104, “regional pixel out of control rate” control within 3/104 is not a problem, and even some manufacturers of corporate standards require that the factory does not allow the appearance of out-of-control pixels, but this will inevitably increase the manufacturer’s manufacturing and maintenance costs and prolong the shipping time.
In different applications, the actual requirements of the pixel loss of control rate can be a big difference, in general, LED display for video playback, the indicators required to control within 1/104 is acceptable, but also can be achieved; if used for simple character information dissemination, the indicators required to control within 12/104 is reasonable.
6. Comparison Between Outdoor and Indoor Full Color LED Screens

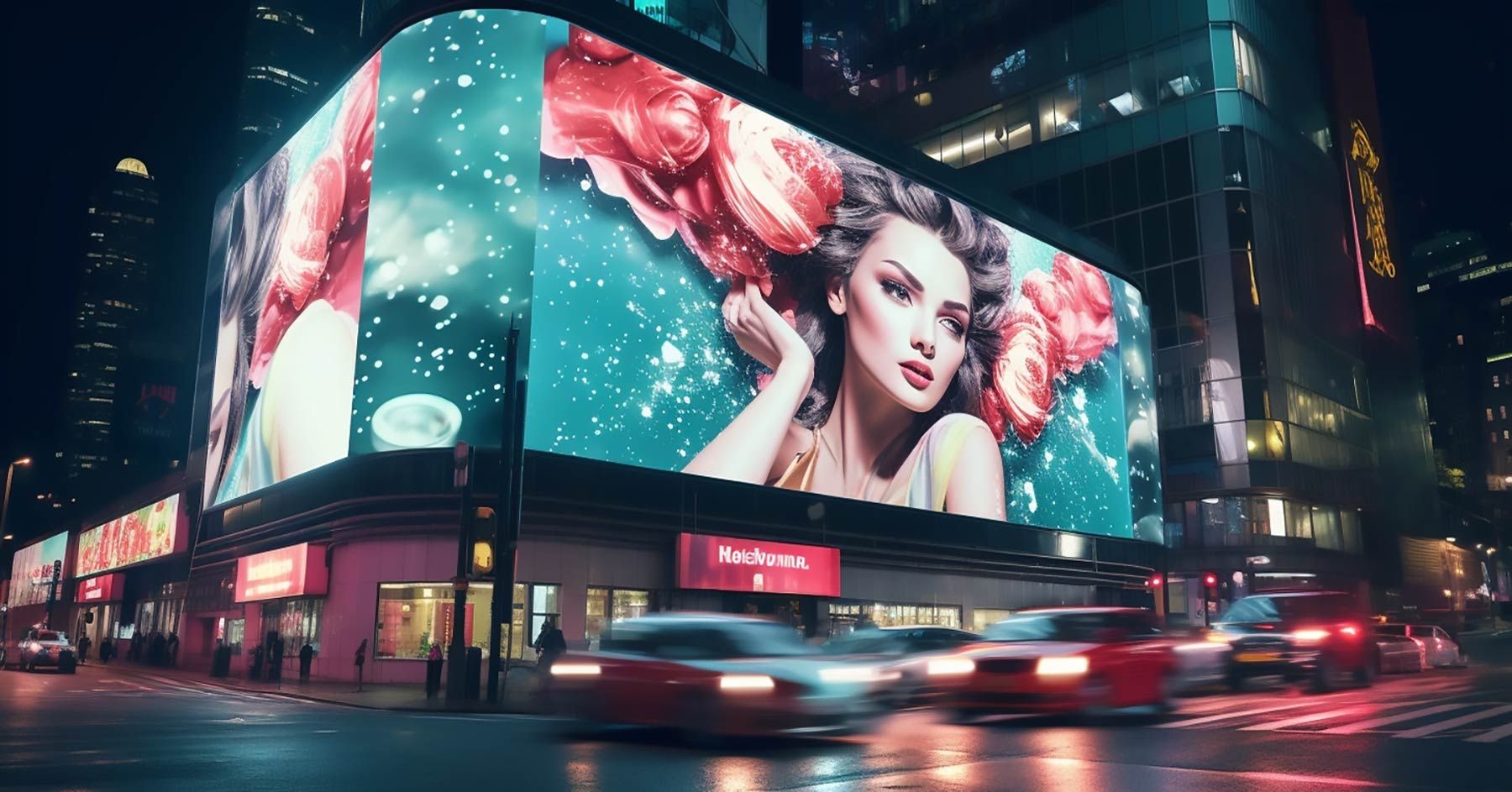

Outdoor full color LED display have high brightness, typically above 5000 to 8000 nits (cd/m²), to ensure that they remain visible in bright light. They require a high level of protection (IP65 or above) to protect against dust and water and to withstand all weather conditions. In addition, outdoor displays are usually used for long-distance viewing, have a large pixel pitch, typically between P5 and P16, and are made of durable materials and construction that are resistant to UV rays and temperature variations, and adaptable to harsh outdoor environments.
Indoor full color LED screen have a lower brightness, typically between 800 and 1500 nits (cd/m²), to adapt to the lighting conditions of indoor environments. As they need to be viewed at close range, indoor displays have a smaller pixel pitch, usually between P1 and P5, to provide higher resolution and detailed display effects. Indoor displays are lightweight and aesthetically pleasing, usually with a thinner design for easier installation and maintenance. The protection level is low, usually IP20 to IP43 can meet the demand.
7. Summary
Nowadays full-colour LED displays are widely used in various fields. This article only explores part of the content. If you want to know more about the expertise of LED display. Please contact us immediately. We will provide you with free professional guidance.
