Backdrop LED Screen 丨 LED Background Screen – RTLED
Our LED background screen has gained immense popularity and received excellent customer feedback, leading to the creation of its own dedicated line—the RT Series. The RT Series LED background screens feature a refresh rate of 3840Hz or higher, ensuring high contrast and grayscale performance, making it the perfect choice for delivering stunning visuals at your events.
High Performance of LED Background Screen
After displaying white for extended periods, many LED screens tend to shift toward a cyan-blue hue. However, the RTLED background LED screen is engineered to minimize this issue, thanks to advanced color calibration and superior LED screen panel quality. This ensures consistent and accurate color performance, even during prolonged use.
The flatness of background LED screen panels ensures an almost seamless connection between panels and modules, resulting in a flawless, uninterrupted display. This means audience experiences smooth, vibrant visuals without any distracting gaps, enhancing the overall impact of your content and creating a more immersive atmosphere for your events.
Corner Protection of LED Background Screen
Background LED screen panel has 4 pcs corner protection equipments, it protects LED lamps not be damaged from transport and disassemble. When assemble LED screens, the equipment can be rotate to normal state,there will has no gap between LED panels.
Weightless Elegance & Thinnest Option
The 500x1000mm LED background screen panel weighs just 11.55kg per unit with a thickness of only 84mm, making it easier to handle, transport, and install. Its lightweight and slim design ensures quick setup and hassle-free mobility for any event.
Mixed Splicing of Background LED Screen
RT series 500x500mm and 500x1000mm LED panels can be seamless spliced from top to bottom and from left to right. Creating the right LED screen display size for your venue
Stable Quality of Background LED screen

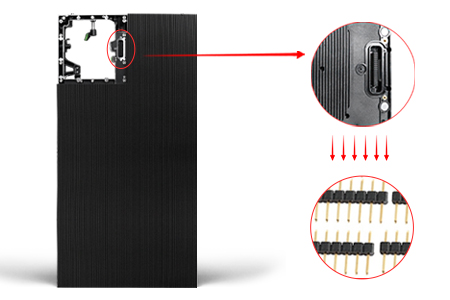

RTLED panel HUB card pins are gold plated, its quality is very high. Not like regular wired LED panel, RTLED’s background LED screen panel has no data and power transmission problem. Besides, HUB card and PCB board thickess is 1.6mm.
High Quality of Background LED Screen
Our background LED screen PCB board consists of 8 layers of cloth, while regular PCB board has only 6 layers of cloth. RT PCB board has better heat dispassion.and it is fire retardant. With good quality PCB board, LED display will not have the problem that one line LED lamps always bright.

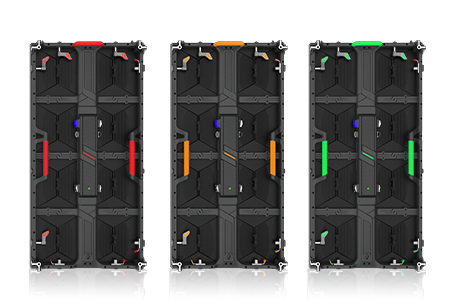

Customized Color with LED Background Screen
The handles color of background LED screen can be customized, red, green and orange are popular.
We also can customize other color according to your request.

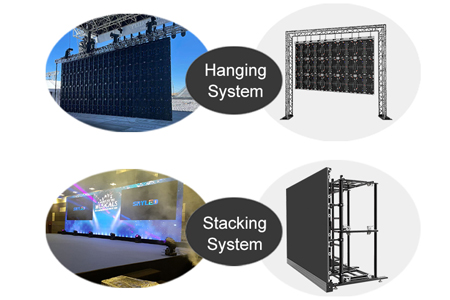

Various Instllation of Background LED Screen
Hanging and stacking installation are both availableBesides, background LED screen can also be installed on wall. We will customize the appropriate LED video wall solution for you according to your requirements.
A1, Please tell us the installation position, size, viewing distance and budget if possible, our sales will provide you best solution of our background LED screen. If you want to select the suitable background LED screen, please check RTLED background LED display blog.
A2, Express such as DHL, UPS, FedEx or TNT usually takes 3-7 working days to arrive. Air shipping and sea shipping are also optional, shipping time is depends on distance.
A3, RTLED background LED display must be testing of at least 72 hours before shipping, from purchase raw materials to ship, each step has strict quality control systems to ensure LED display with good quality.
| Product Name | RT Series LED Background Screen | |||||
| Item | P1.95 | P2.604 | P2.84 | P2.976 | P3.47 | P3.91 |
| Density | 262,984 dots/㎡ | 147,928 dots/㎡ | 123,904dots/㎡ | 112,910dots/㎡ | 83,050dots/㎡ | 65,536dots/㎡ |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2121/SMD121 | SMD1921 | SMD1515/SMD1921 |
| Panel Resolution | 256x256dots/256x512dots | 192x192dots/192x384dots | 176x176dots/176x352dots | 168x168dots/168x332dots | 144x144dots/144x288dots | 128x128dots/128x256dots |
| Drive Method | 1/32 Scan | 1/32 Scan | 1/22 Scan | 1/28 Scan | 1/18 Scan | 1/16 Scan |
| Best Viewing Distance | 1.95-20m | 2.5-25m | 2.8-28m | 3-30m | 3-30m | 4-40m |
| Waterproof Level | IP30 | Front IP65, Rear IP54 | ||||
| Panel Size | 500 x 500m | |||||
| Refresh Rate | 3840Hz | |||||
| Color | Full color | |||||
| Function | SDK | |||||
| Panel Weight | 7.6KG | |||||
| Brightness | Indoor 800-1000nits, Outdoor 4500-5000nits | |||||
| Max Power Comsumption | 800W | |||||
| Average Power Consumption | 300W | |||||
| Input Voltage | AC110V/220V ±10％ | |||||
| Certificate | CE, RoHS | |||||
| Application | Indoor/outdoor | |||||
| Life Span | 100,000 Hours | |||||

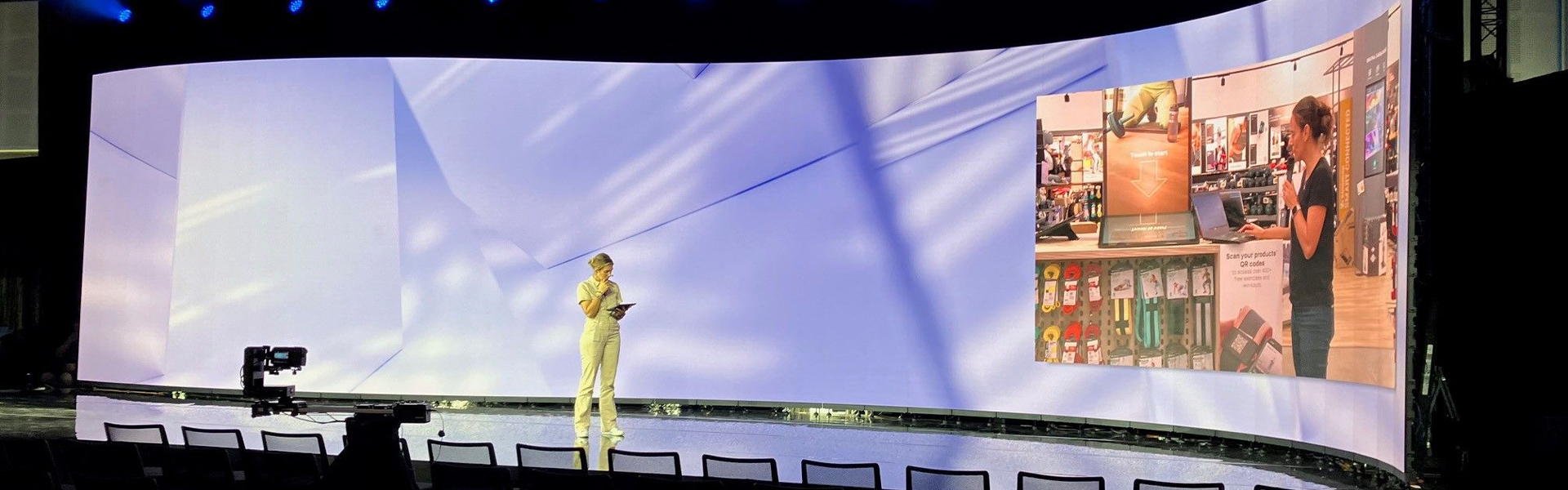

Besides using in backdrop, whether it is for commercial use such as shopping malls, airports, stations, supermarkets, hotels, or rental use such as performances, competitions, events, exhibitions, festivals, stages, etc., Background LED screen can provide you with the best visual display effect. Some customers buy LED display for their own use, while most customers purchase our backdrop LED screen for LED rental business. Above are some examples of various background LED screen provided by customers for use in other occasions.
