5 x 3 pcs Complete LED Video Wall System P3.9 Outdoor LED Display

Short Description:

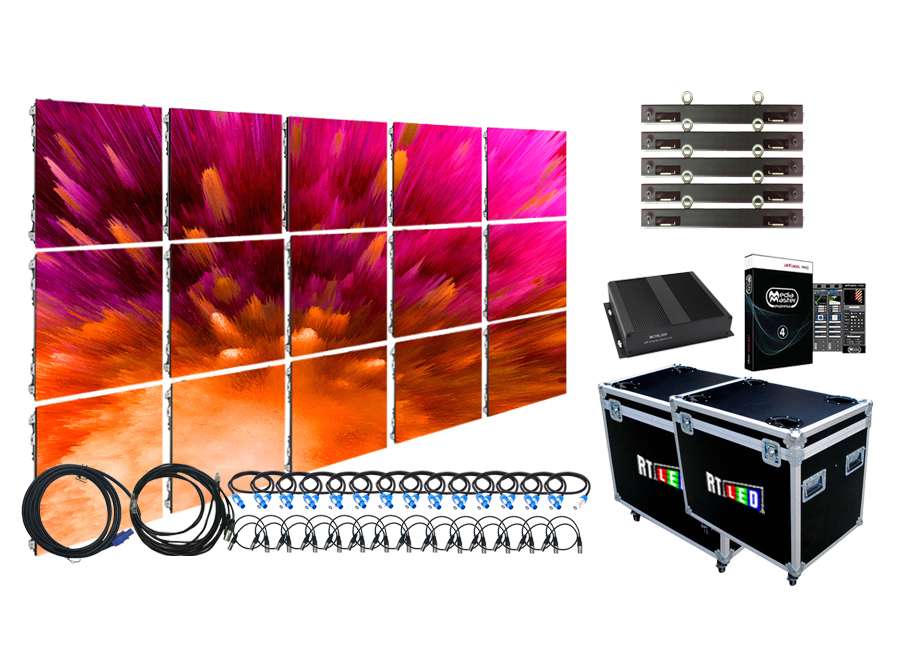

Packing List:
15 x Outdoor P3.91 LED panels 500x500mm
1 x Novastar sending box MCTRL300
1 x Main power cable 10m
1 x Main Signal cable 10m
14 x Cabinet power cables 0.7m
14 x Cabinet signal cables 0.7m
5 x Hanging bars for rigging
2 x Flight case
1 x Software
Plates and bolts for the panels and structures
Installation video or diagram

Product Detail

FAQ

Product Tags

Product Details

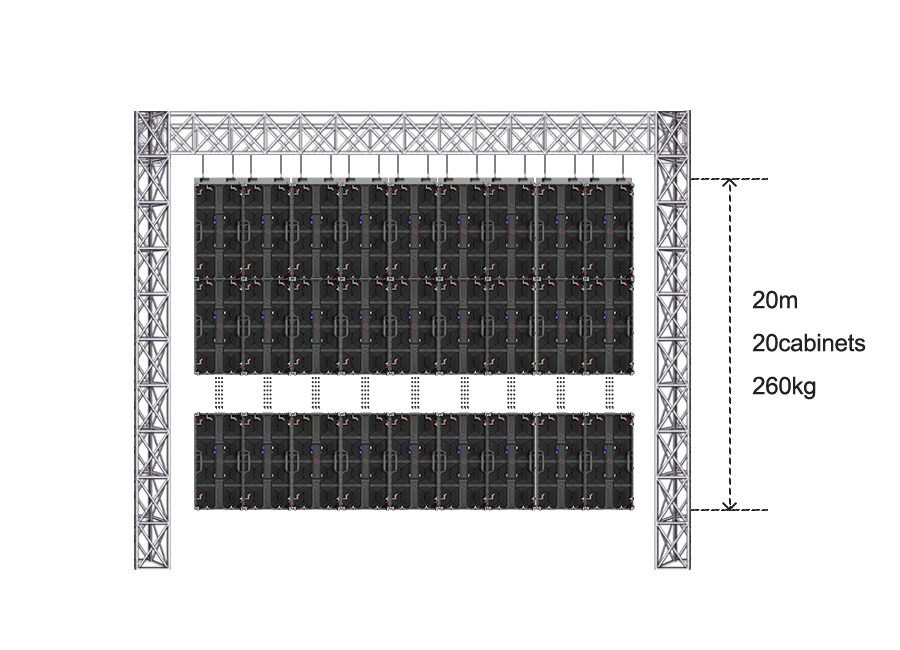

Description: RT series LED video wall panel is light weight and thin, it is convenient for rental use. It can be hang on truss and stack on ground, each vertical line can put max 40pcs 500x500mm LED panels or 20pcs 500x1000mm LED panels.

Parameter

Item	P3.91
Pixel Pitch	3.91mm
Led Type	SMD1921
Panel Size	500 x 500mm
Panel Resolution	128 x 128 dots
Panel Material	Die Casting Aluminum
Panel Weight	7.6KG
Drive Method	1/16 Scan
Best Viewing Distance	4-40m
Refresh Rate	3840Hz
Frame Rate	60Hz
Brightness	5000 nits
Gray Scale	16 bits
Input Voltage	AC110V/220V ±10％
Max Power Consumption	200W / Panel
Average Power Consumption	100W / Panel
Application	Outdoor
Support Input	HDMI, SDI, VGA, DVI
Power Distribution Box Required	3KW
Total Weight (all included)	228KG

Our Service

Free LOGO Print

RTLED can free print LOGO on LED video panels or packages even if buy sample order.

Multiple Language Service

RTLED sales are experienced and we can offer Mandarin, Cantonese, English, Spanish, Japanese service.

Free Technical Training

We can offer free technical training when you visit our factory, we teach you how to install and use rental LED screen.

Provide Trade Assurance

RTLED can provide trade assurance for LED display orders, it will guarantee payment safety and product quality.

FAQ

Q1, What’s the difference between RT series and other rental LED panels?

A1, A, RT LED panel PCB board and HUB card is 1.6mm thickness, regular LED display is 1.2mm thickness. With thick PCB board and HUB card, LED display quality is better. B, RT LED panel PINs are gold-plated, signal transmission is more stable. C, RT LED display panel power supply is automatically switched.

Q2, What’s the difference for different pixel pitch?

A2, At present, for RT LED panel, we have indoor P2.6, P2.84, P2.976, P3.91, outdoor P2.976, P3.47, P3.91, P4.81. The number after “P” is smaller, the LED display screen resolution is higher. And its best viewing distance is shorter. You can choose the most suitable one according to actual installation situation.

Q3, What certificate do you have?

A3, We have CE, RoHS, FCC, some products passed CB and ETL certificates.

Q4, How about the payment term?

A4, We accept 30% deposit before production and 70% balance before shipping. We also accept L/C for huge order.
