3 x 2 pcs Turnkey Solution for P3.47 Outdoor LED Video Wall Panel

Short Description:

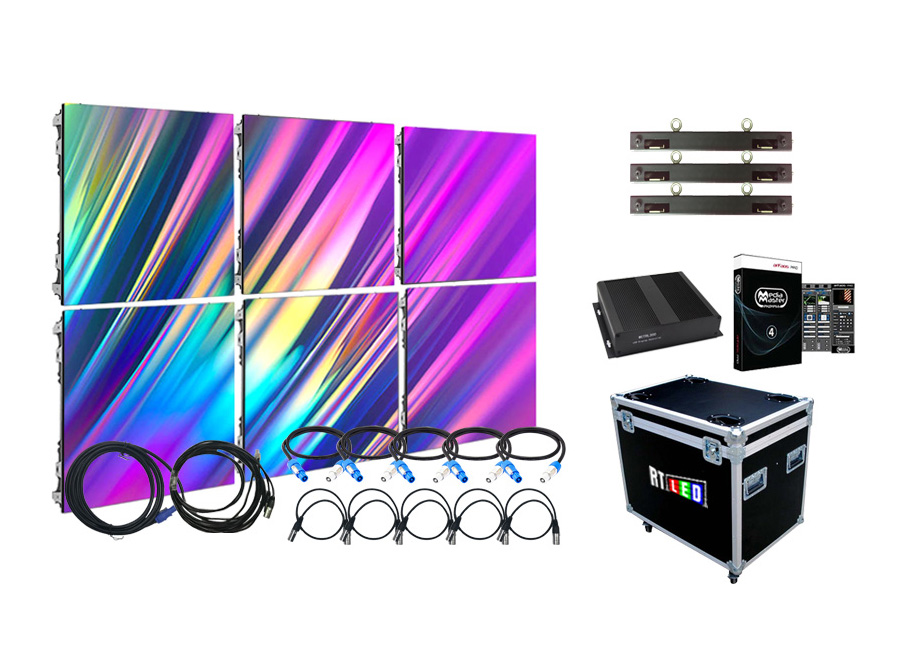

Packing List:
6 x Outdoor P3.47 LED panels 500x500mm
1x Novastar sending box MCTRL300
1 x Main power cable 10m
1 x Main Signal cable 10m
5 x Cabinet power cables 0.7m
5 x Cabinet signal cables 0.7m
3 x Hanging bars for rigging
1 x Flight case
1 x Software
Plates and bolts for the panels and structures
Installation video or diagram


Product Detail

FAQ

Product Tags

Product Details

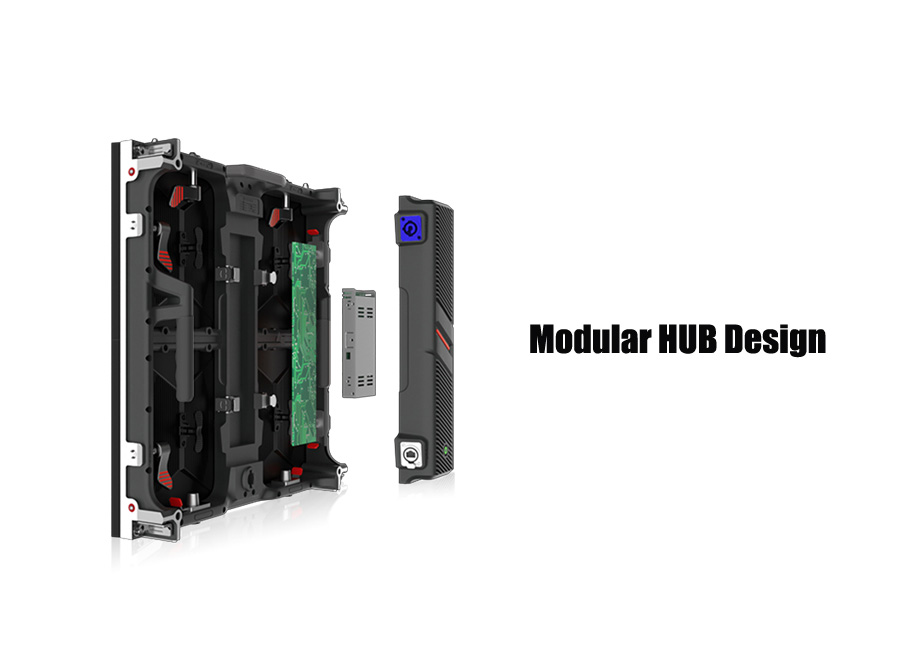

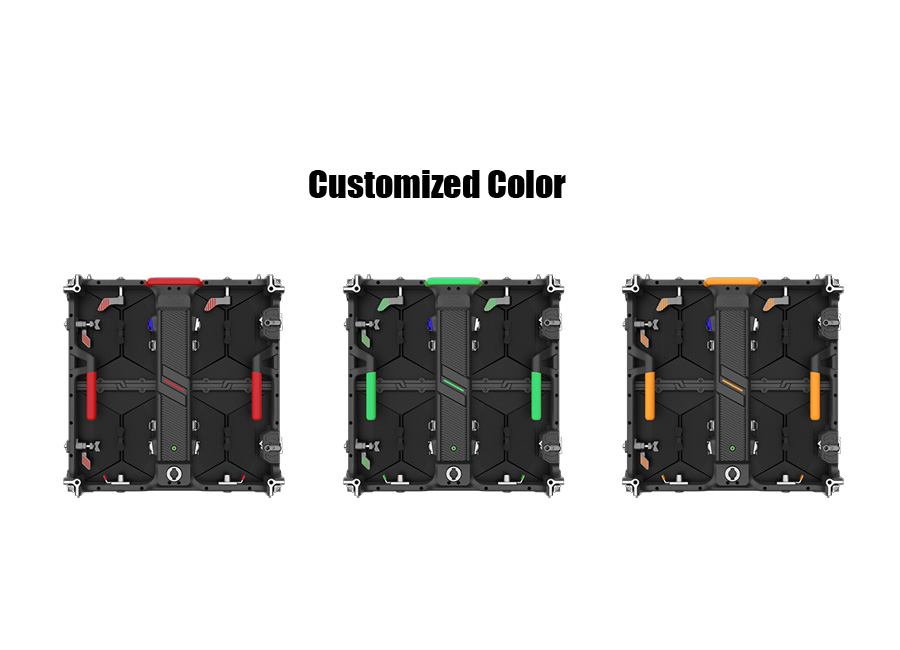

Description: RT series LED display panel is modular HUB designed with independent power box. It is more convenient for assemble and maintenance. It is well designed to use for events, stage and concert etc. We can customize LED panels color according to your requirement.

led video wall 3x2

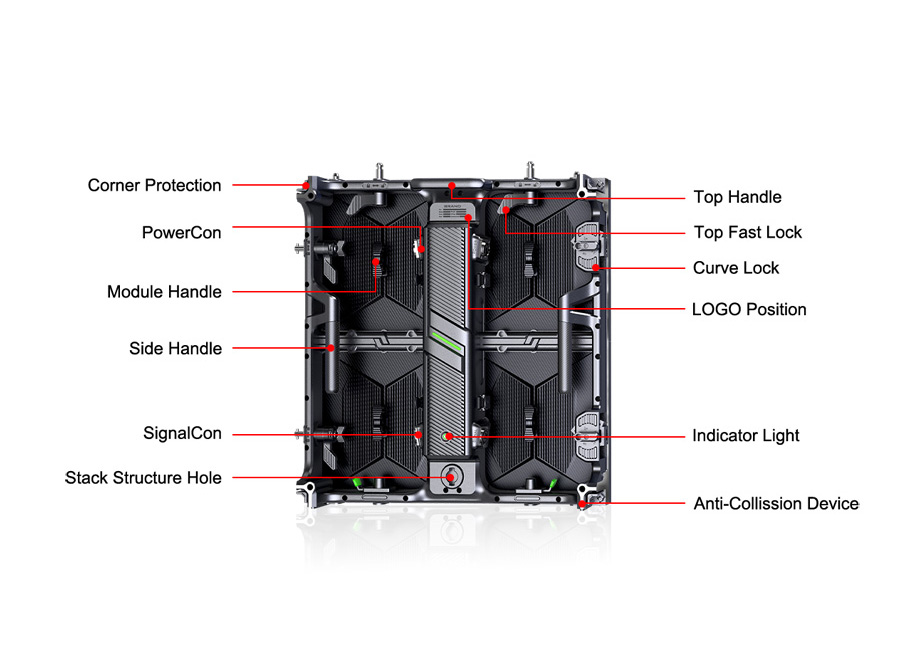

rental led panel (2)
Modular LED Panel
led display panel

Parameter

Item P3.47
Pixel Pitch 3.47mm
Led Type SMD1921
Panel Size 500 x 500mm
Panel Resolution 144 x 144 dots
Panel Material Die Casting Aluminum
Panel Weight 7.6KG
Drive Method 1/18 Scan
Best Viewing Distance 3.5-35m
Refresh Rate 3840Hz
Frame Rate 60Hz
Brightness 5000 nits
Gray Scale 16 bits
Input Voltage AC110V/220V ±10
Max Power Consumption 200W / Panel
Average Power Consumption 100W / Panel
Application Outdoor
Support Input HDMI, SDI, VGA, DVI
Power Distribution Box Required 1.2KW
Total Weight (all included) 98KG



Our Service

Factory Direct Sale

RTLED is a 10 years LED display manufacturer, we offer customer LED display screen with factory price.

3 Years Warranty

RTLED offer 3 years warranty for all products, within warranty time, we can free repair or replace accessories.

3-day Fast Delivery

We have many RT series LED wall panels in stock, which can be shipped within 3 days.

Professional After-Sale Service

RTLED has a professional after sale service team, we have instruction and video to teach you how to install and use LED display. And we can also help you online if needed.

FAQ

Q1, What’s the difference between RT series and other rental LED panels?

A1, A, RT LED panel PCB board and HUB card is 1.6mm thickness, regular LED display is 1.2mm thickness. With thick PCB board and HUB card, LED display quality is better. B, RT LED panel PINs are gold-plated, signal transmission is more stable. C, RT LED display panel power supply is automatically switched.

Q2, Can RT series LED video wall panel be used outdoor permanently?

A2, Outdoor RT LED panels can be used for outdoor events, but not suitable for long time use outside. If want to build advertising LED display, truck / trailer LED display, it is better to buy fixed outdoor LED display.

Q3, How do you control product quality?

A3, We check all raw material quality, and test LED modules for 48 hours, after assemble LED cabinet, we test complete LED display for 72 hours to ensure every pixel working well.

Q4, Hong long does the shipping time take?

A4,  If ship by Express such as DHL, UPS, FedEx, TNT, shipping time is about 3-7 working days, if by air shipping, it takes about 5-10 working days, if by sea shipping, shipping time is about 15-55 working days. Different country shipping time is different.
